系列商品均使用日亞化LED
All products use Nichia LED

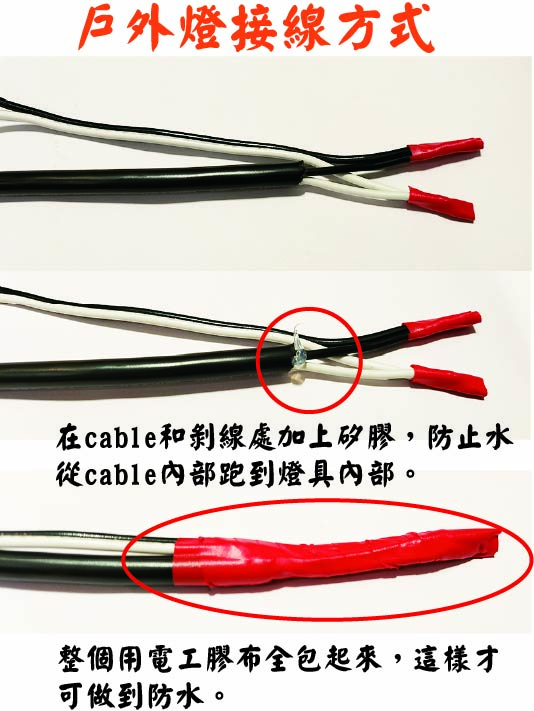

接線方式
Mode of connection
1、LED封裝3030規格可做色溫-LED package 3030 specifications can be used for color temperature
| Ra>80 | ||
| 2000K | 2200K | 2500K |
| 2700K | 3000K | 3500K |
| 4000K | 4500K | 5000K |
| 5700K | 6500K | |
| Ra>90 | ||
| 2700K | 3000K | 4000K |
| 5700K | ||
2、LED封裝3535規格可做色溫-LED package 3535 specifications can be used for color temperature
| Ra>70 | |
| 5700K | |
| Ra>80 | |
| 2700K | 3000K |
| 4000K | 5000K |
| Ra>90 | |
| 2700K | 3000K |
| 4000K | 5700K |
3、LED封裝6558規格可做色溫-LED package 6558 specifications can be used for color temperature
| Ra>80 | |
| 2000K | 2200K |
| 2500K | 2700K |
| 3000K | 3500K |
| 4000K | 5700K |
| Ra>90 | |
| 2700K | 3000K |
| 4000K | 5000K |
4、LED封裝1717規格可做色溫-LED package 1717 specifications can be used for color temperature
| Ra>80 | ||
| 2200K | 2700K | 3000K |
| 3500K | 4000K | |
| Ra>90 | ||
| 2700K | 3000K | 4000K |
| 5700K | ||

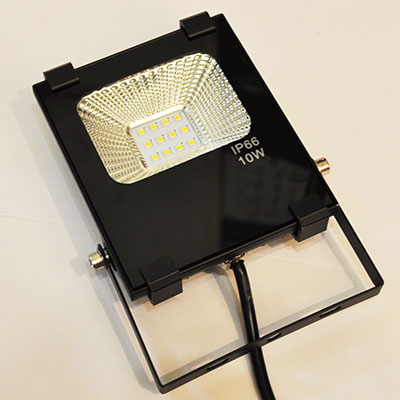

泛光燈-黑-Floodlight |
|
 |
|
| 照片-Photo | M1 |
瓦數-Power |
12 |
燈數-LED PCS |
12 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
120 |
| 尺寸-Size | Φ135*110*40mm |
下載-Download |
SPEC |
備註-Remarks |
|
投光燈-黑-Spotlights |
|
 |
|
瓦數-Power |
12 |
燈數-LED PCS |
1 |
封裝-Package |
6558 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
30、45、15X40 |
| 尺寸-Size | Φ135*110*40mm |
下載-Download |
SPEC |
備註-Remarks |
|

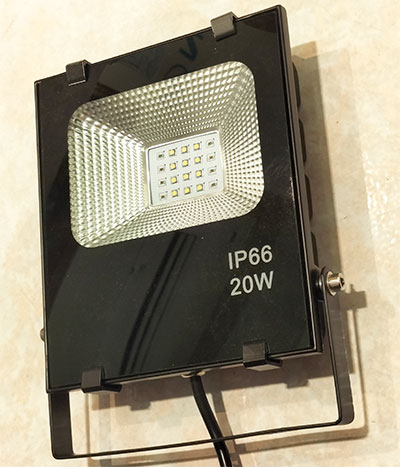

泛光燈-黑-Floodlight-12~24V |
|
 |
|
| 照片-Photo | M1 |
瓦數-Power |
20 |
燈數-Led PCS |
12 |
封裝-Package |
3535 |
外殼-Shell color |
Black |
輸入-Input |
12~24V |
角度-Angle |
120 |
| 尺寸-Size | Φ185*160*50 mm |
下載-Download |
|
備註-Remarks |
|

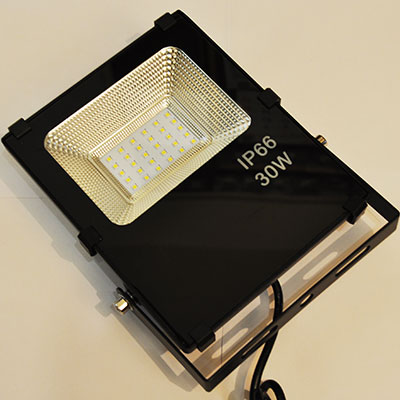

泛光燈-黑-Floodlight
|
|
 |
|
瓦數-Power |
30 |
燈數-Led PCS |
30 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
120 |
| 尺寸-Size | Φ220*180*58 mm |
下載-Download |
SPEC、IES |
備註-Remarks |
|

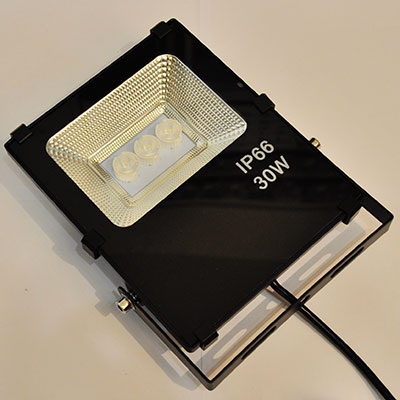

投光燈-黑-Spotlights
|
|
 |
|
瓦數-Power |
30 |
燈數-LED PCS |
3 |
封裝-Package |
6558 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
30、45、15X40 |
| 尺寸-Size | Φ220*180*58 mm |
下載-Download |
SPEC、IES |
備註-Remarks |
|

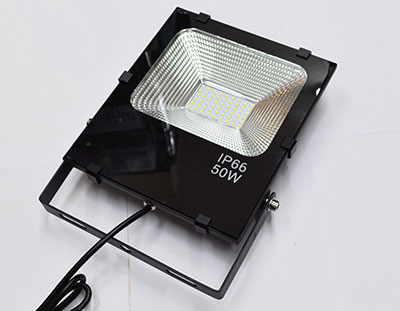

泛光燈-黑-Floodlight
|
|
 |
|
瓦數-Power |
50 |
燈數-LED PCS |
54 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
120 |
| 尺寸-Size | Φ240*210*55mm |
下載-Download |
SPEC |
| 備註-Remarks | |

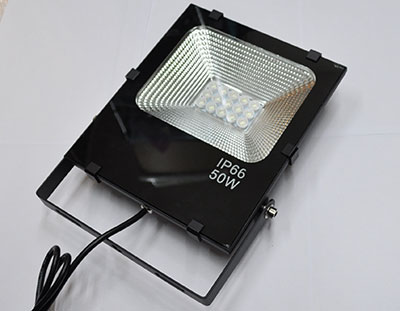

投光燈-黑-Spotlights
|
|
 |
|
瓦數-Power |
50 |
燈數-LED PCS |
15 |
封裝-Package |
3535 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ240*210*55mm |
下載-Download |
SPEC、IES |
備註-Remarks |
|

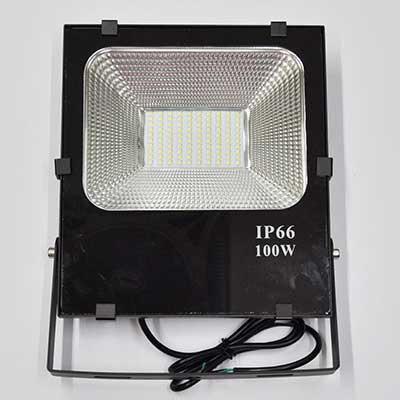

泛光燈-黑-Floodlight
|
|
 |
|
瓦數-Power |
100 |
燈數-LED PCS |
100 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
120 |
| 尺寸-Size | Φ285*255*70 mm |
下載-Download |
SPEC |
備註-Remarks |
|

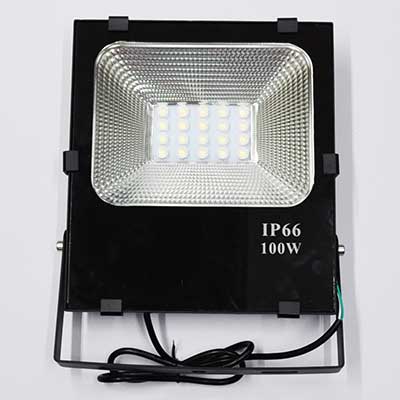

投光燈-黑-Spotlights
|
|
 |
|
瓦數-Power |
100 |
燈數-LED PCS |
20 |
封裝-Package |
3535 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ285*255*70 mm |
下載-Download |
SPEC、IES |
備註-Remarks |
|

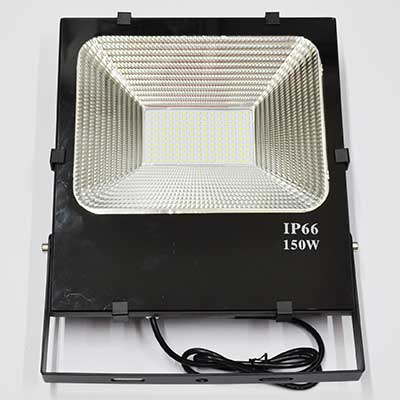

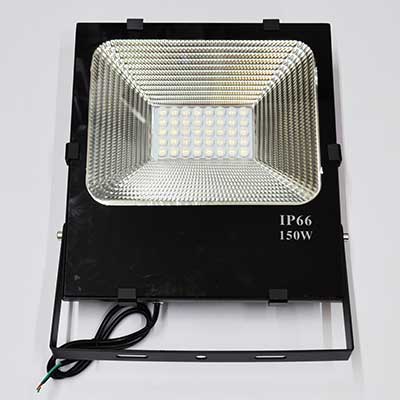

泛光燈-黑-Floodlight
|
|
 |
|
瓦數-Power |
150 |
燈數-LED PCS |
150 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
120 |
| 尺寸-Size | Φ345*310*85 mm |
下載-Download |
SPEC |
備註-Remarks |
|
投光燈-黑-Spotlights
|
|
 |
|
瓦數-Power |
150 |
燈數-LED PCS |
40 |
封裝-Package |
3535 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ345*310*85 mm |
下載-Download |
SPEC、IES |
備註-Remarks |
|

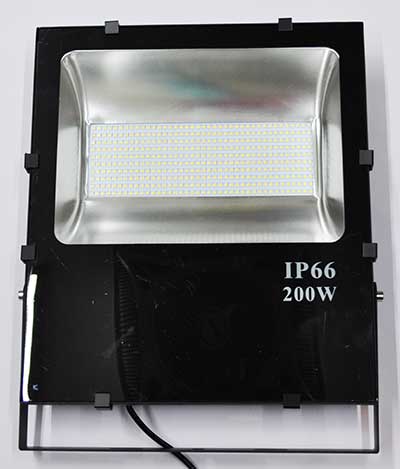

泛光燈-黑-Floodlight
|
|
 |
|
| 照片-Photo | M1 |
瓦數-Power |
200 |
燈數-LED PCS |
200 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
120 |
| 尺寸-Size | Φ412*360*93 mm |
下載-Download |
|
備註-Remarks |
|

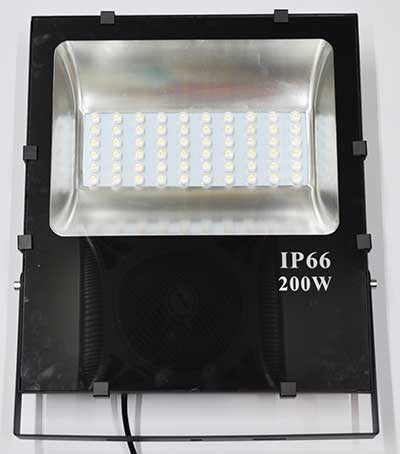

投光燈-黑-Spotlights
|
|
 |
|
瓦數-Power |
200 |
燈數-LED PCS |
60 |
封裝-Package |
3535 |
外殼-Shell color |
Black |
輸入-Input |
110~277V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ412*360*93 mm |
下載-Download |
SPEC、IES |
備註-Remarks |
|

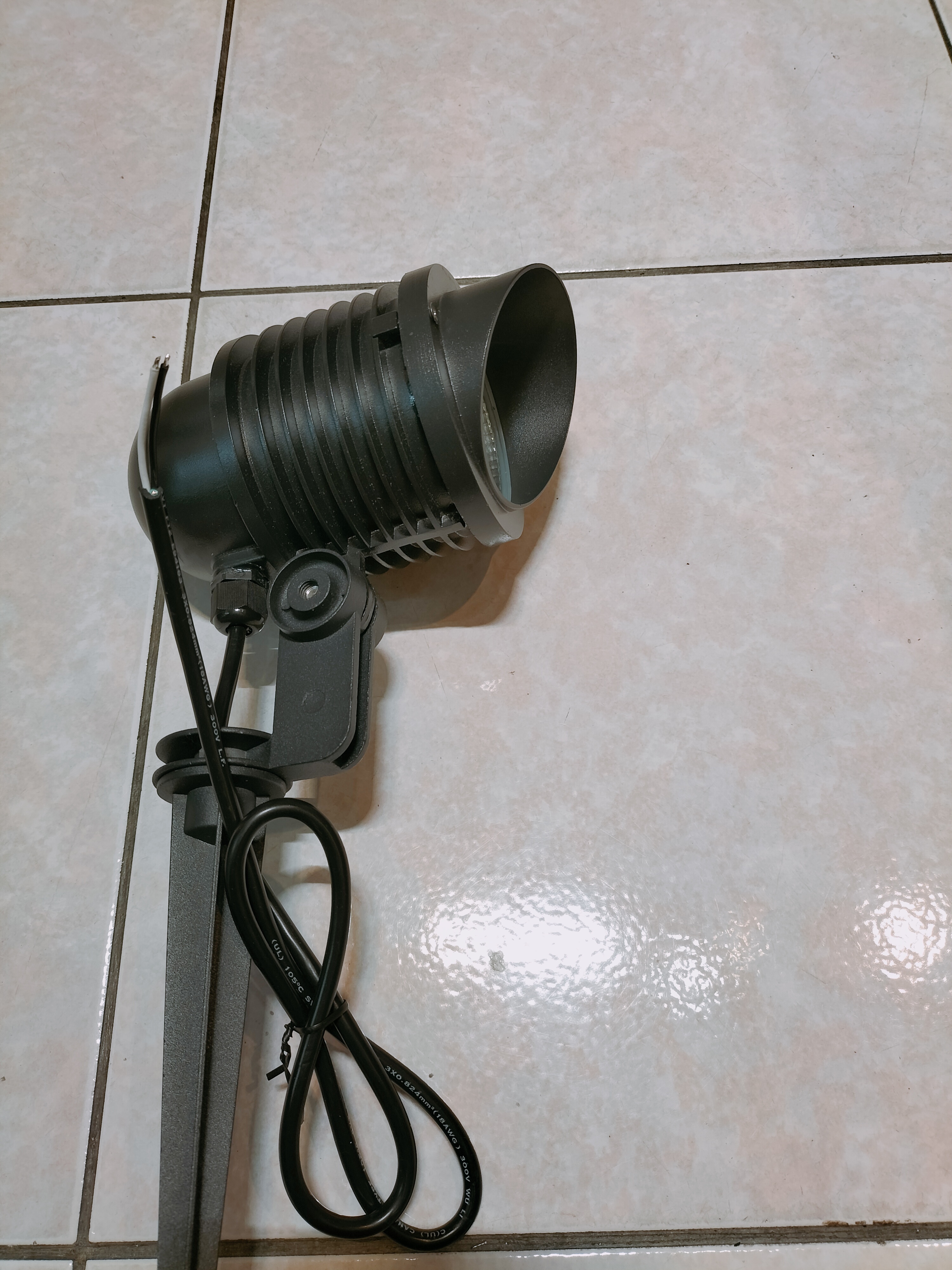

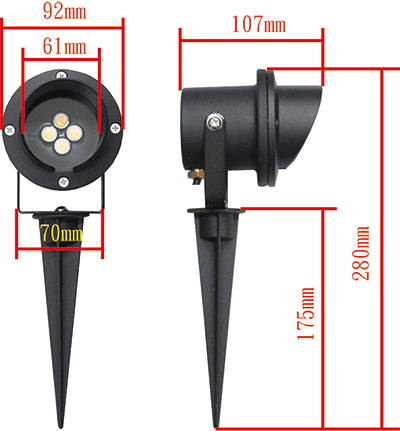

G01-92插地燈-Ground lamp
|
|

|
|
| 照片-Photo | M1 |
瓦數-Power |
5、8 |
燈數-LED PCS |
4、8 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ92*280 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.8M，如需要加長可另外告知- Standard outlet 0.8M, if you need to extend it, please inform us separately |

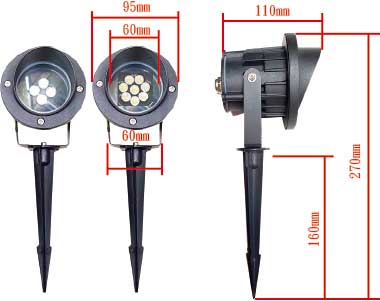

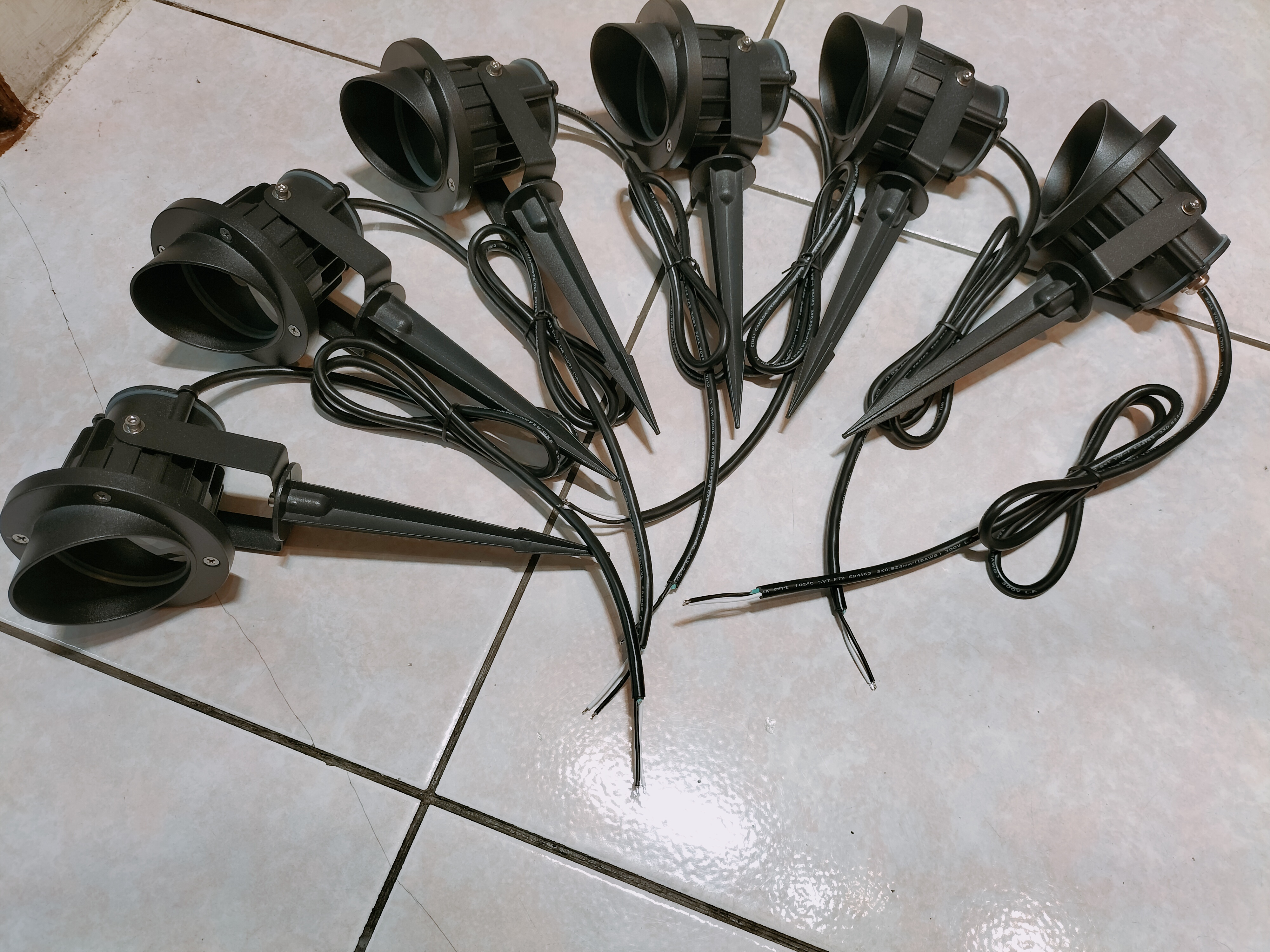

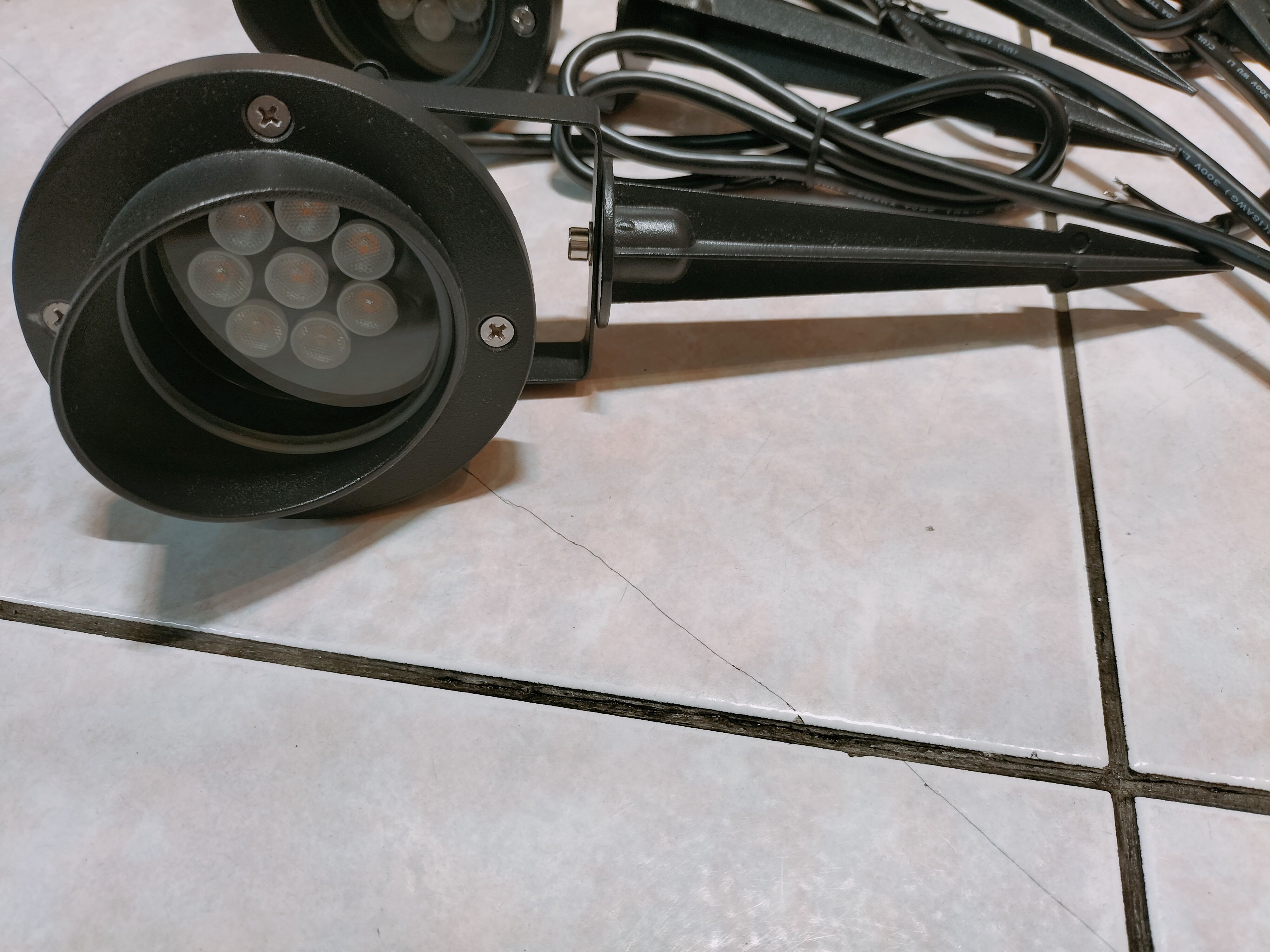

G02-95插地燈-Ground lamp cap edge
|
|
 |
|
| 照片-Photo | P1、P2 |
瓦數-Power |
5、8 |
燈數-LED PCS |
4、8 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ95*270 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.8M，如需要加長可另外告知- Standard outlet 0.8M, if you need to extend it, please inform us separately |

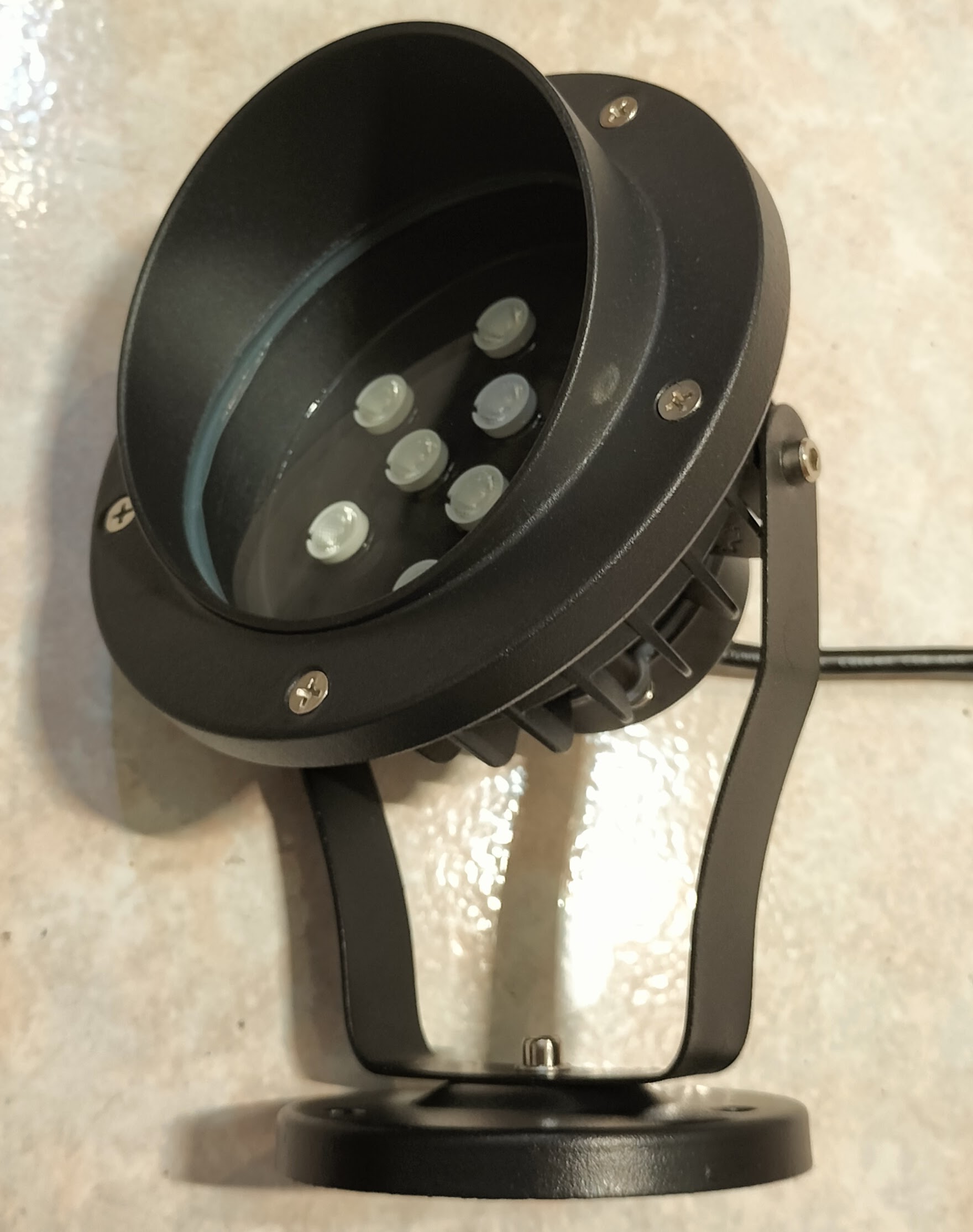

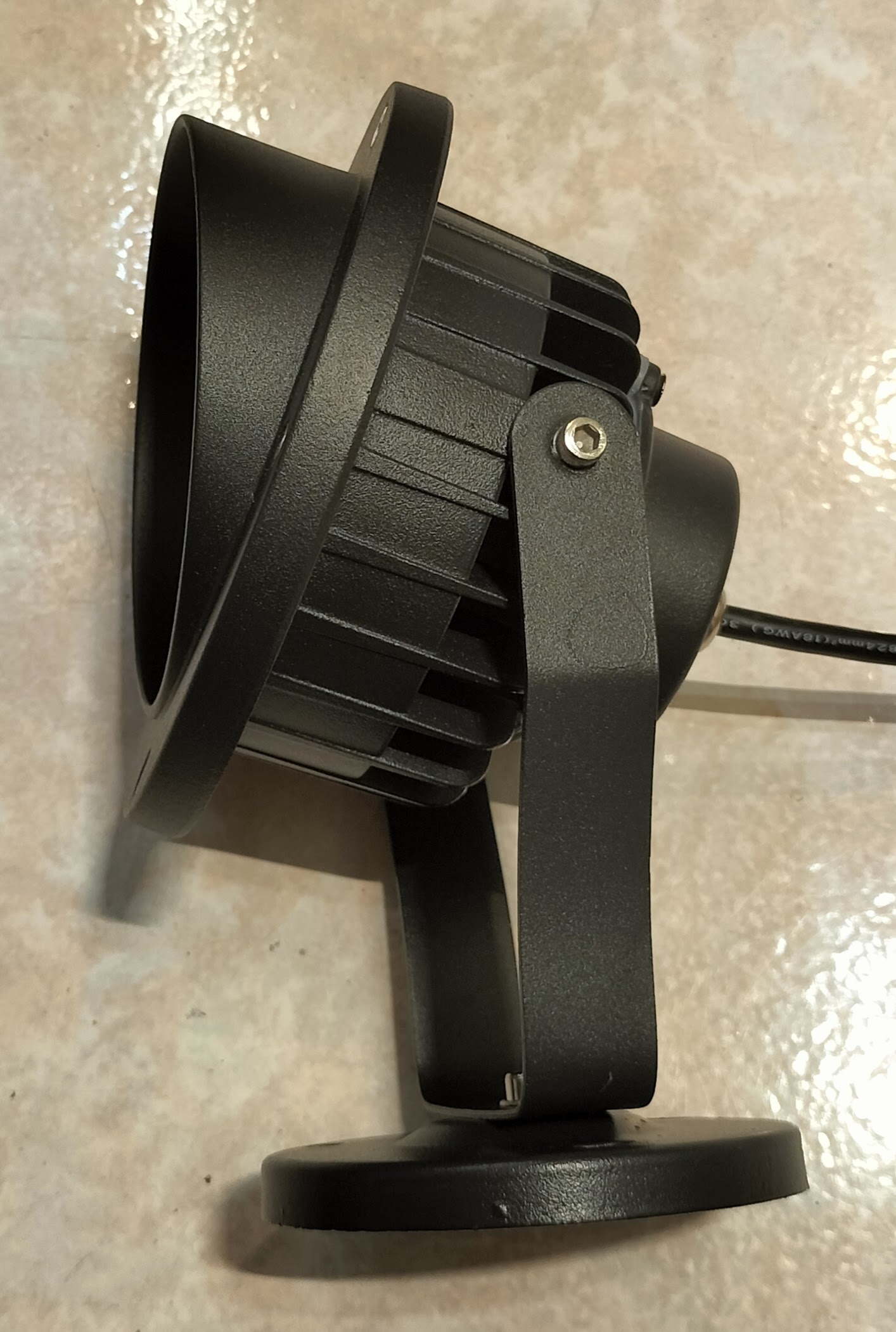

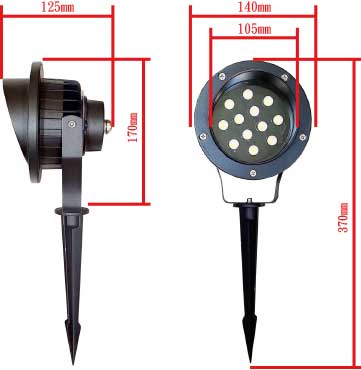

G03-140插地燈-Ground lamp cap edge
|
|
 |
|
| 照片-Photo | P1、P2、M1 |
瓦數-Power |
10、13、15 |
燈數-LED PCS |
9、9、12 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ140*120*370 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.8M，如需要加長可另外告知- Standard outlet 0.8M, if you need to extend it, please inform us separately |

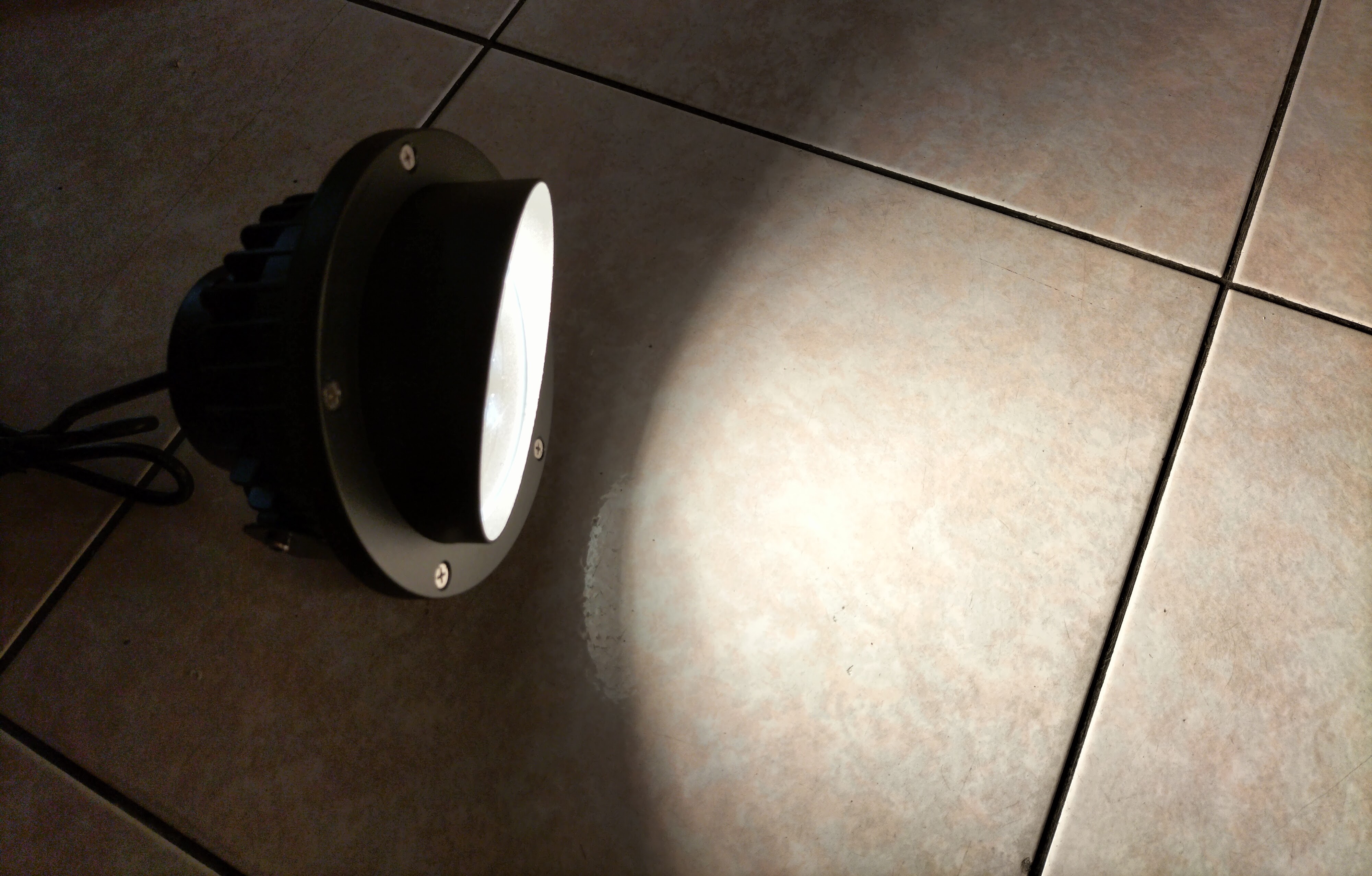

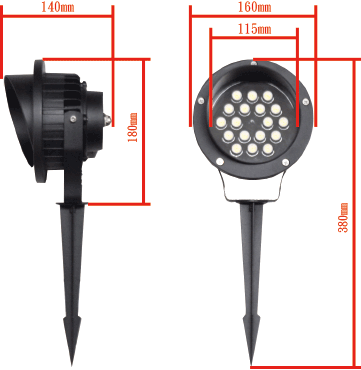

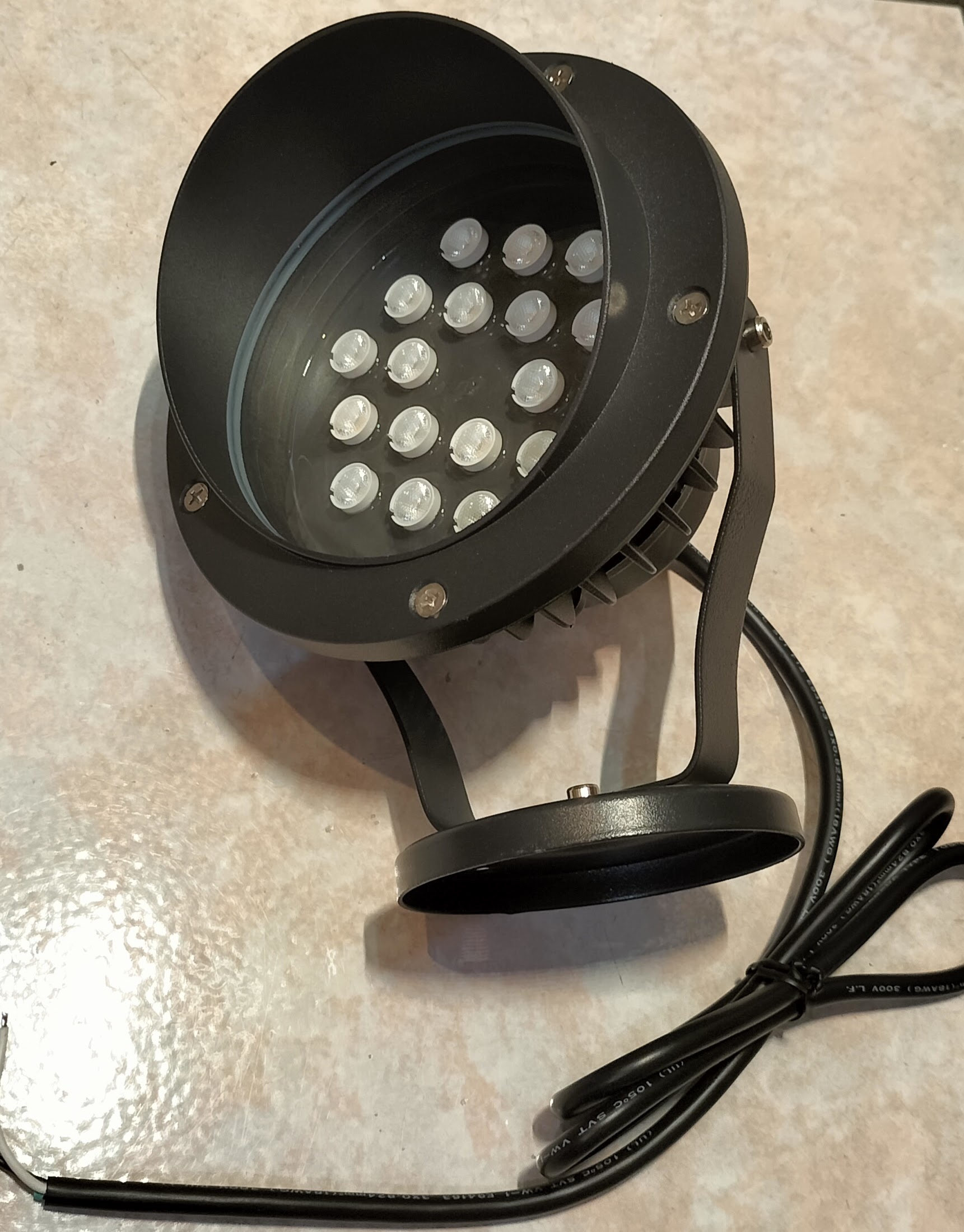

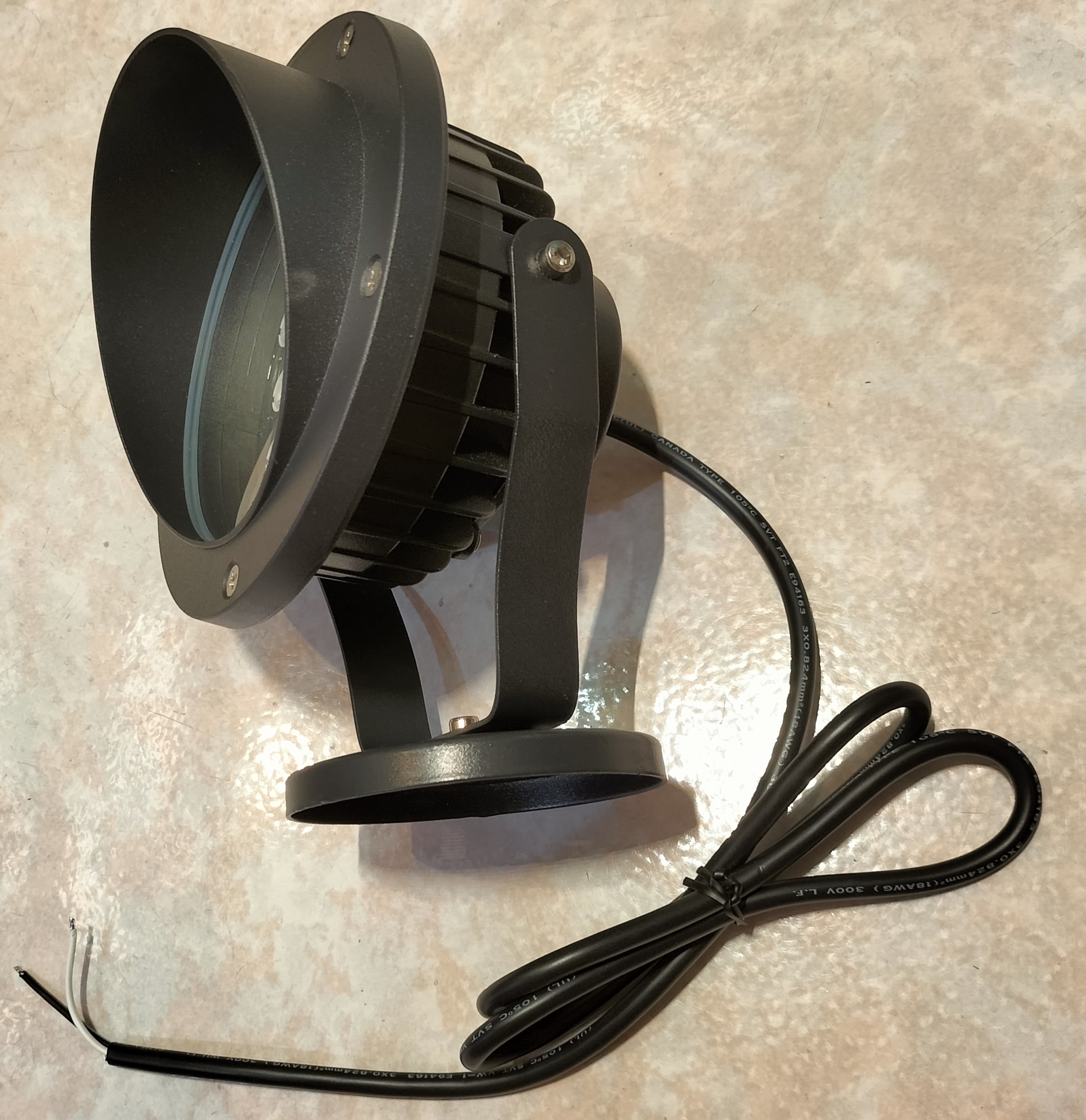

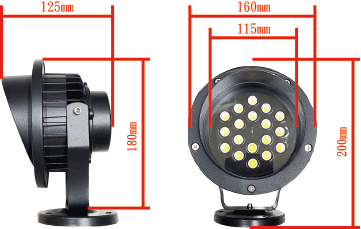

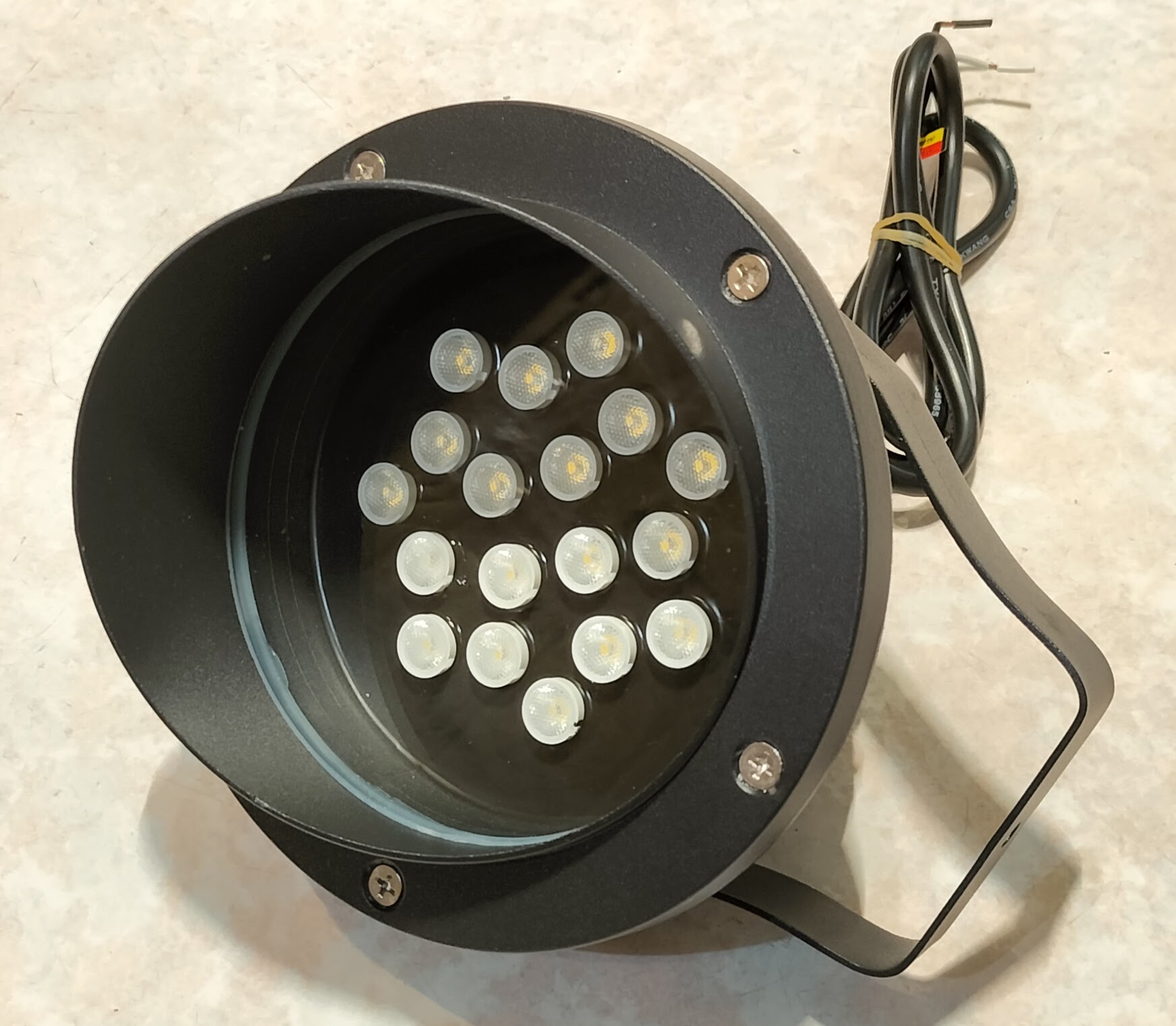

G04-投射燈、插地燈-Projection lamp cap edge、Ground lamp cap edge
|
|

|
|
| 照片-Photo | P1、P2、P3、P4 |
瓦數-Power |
20、25 |
燈數-LED PCS |
18、30 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ160*140*380 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.8M，如需要加長可另外告知- Standard outlet 0.8M, if you need to extend it, please inform us separately |

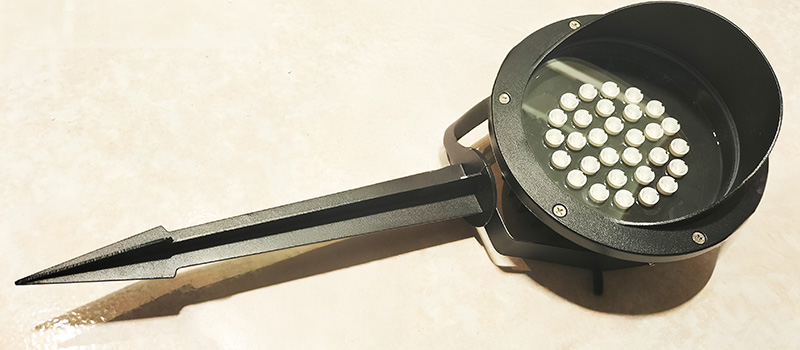

G08-投射燈、插地燈-Projection lamp cap edge、Ground lamp cap edge
|
|
|
|
| 照片-Photo | |
瓦數-Power |
30 |
燈數-LED PCS |
30 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ185*115*230 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.8M，如需要加長可另外告知- Standard outlet 0.8M, if you need to extend it, please inform us separately |

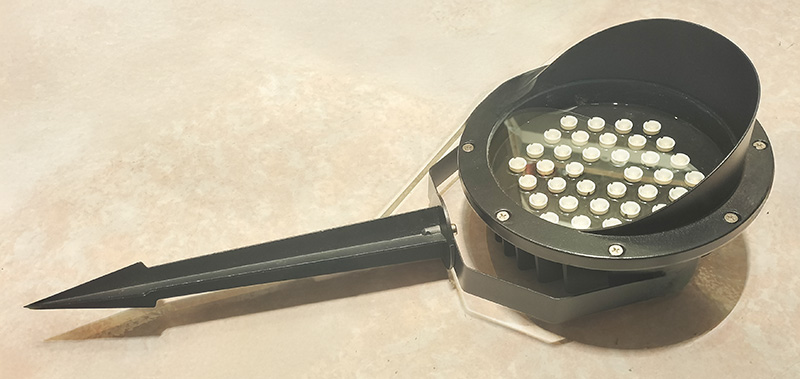

G09-投射燈、插地燈-Projection lamp cap edge、Ground lamp cap edge
|
|
|
|
| 照片-Photo | |
瓦數-Power |
40 |
燈數-LED PCS |
36 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | Φ205*130*260 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.8M，如需要加長可另外告知- Standard outlet 0.8M, if you need to extend it, please inform us separately |

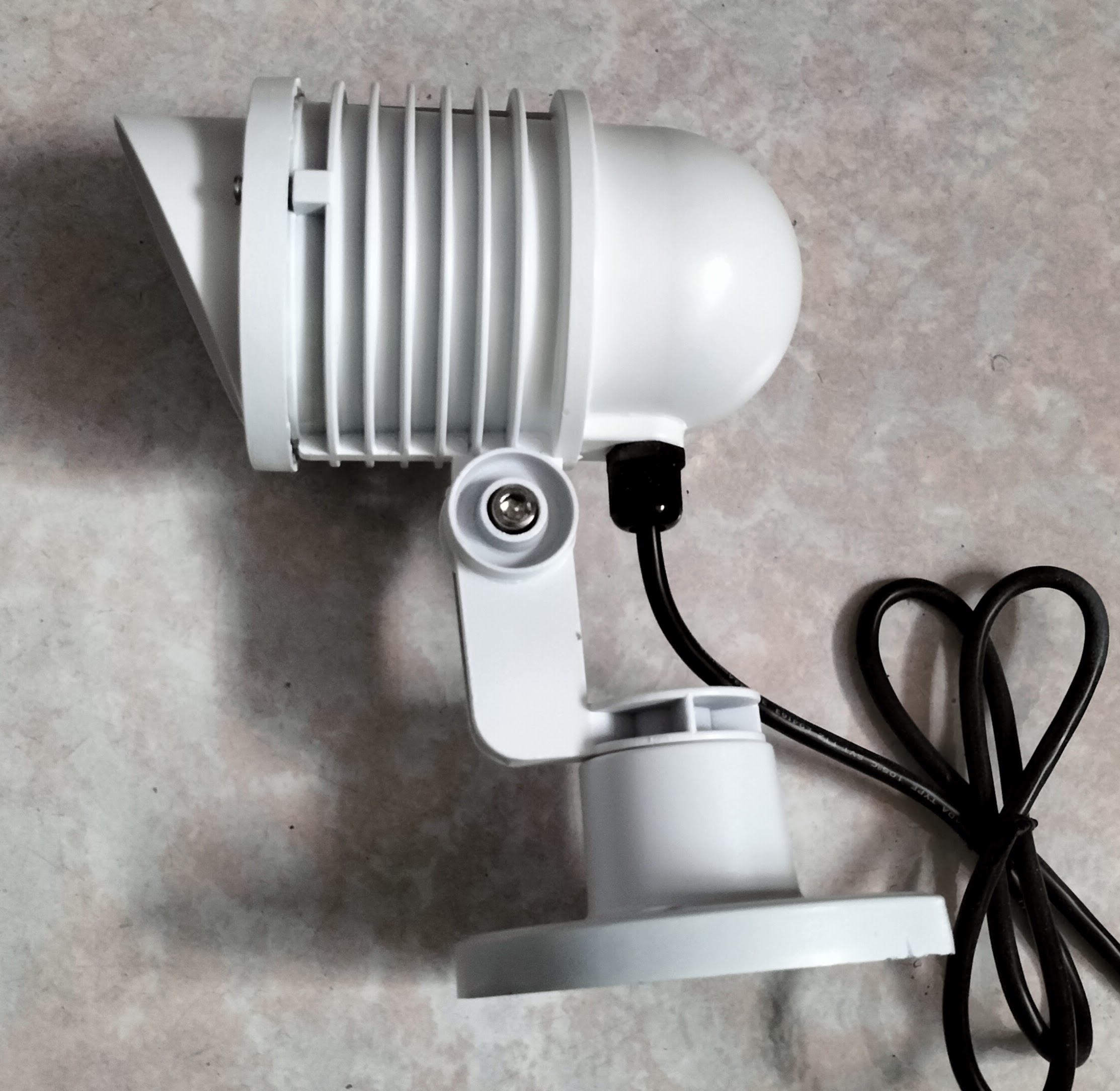

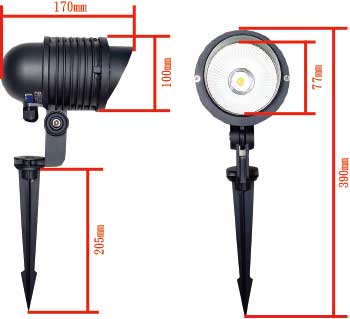

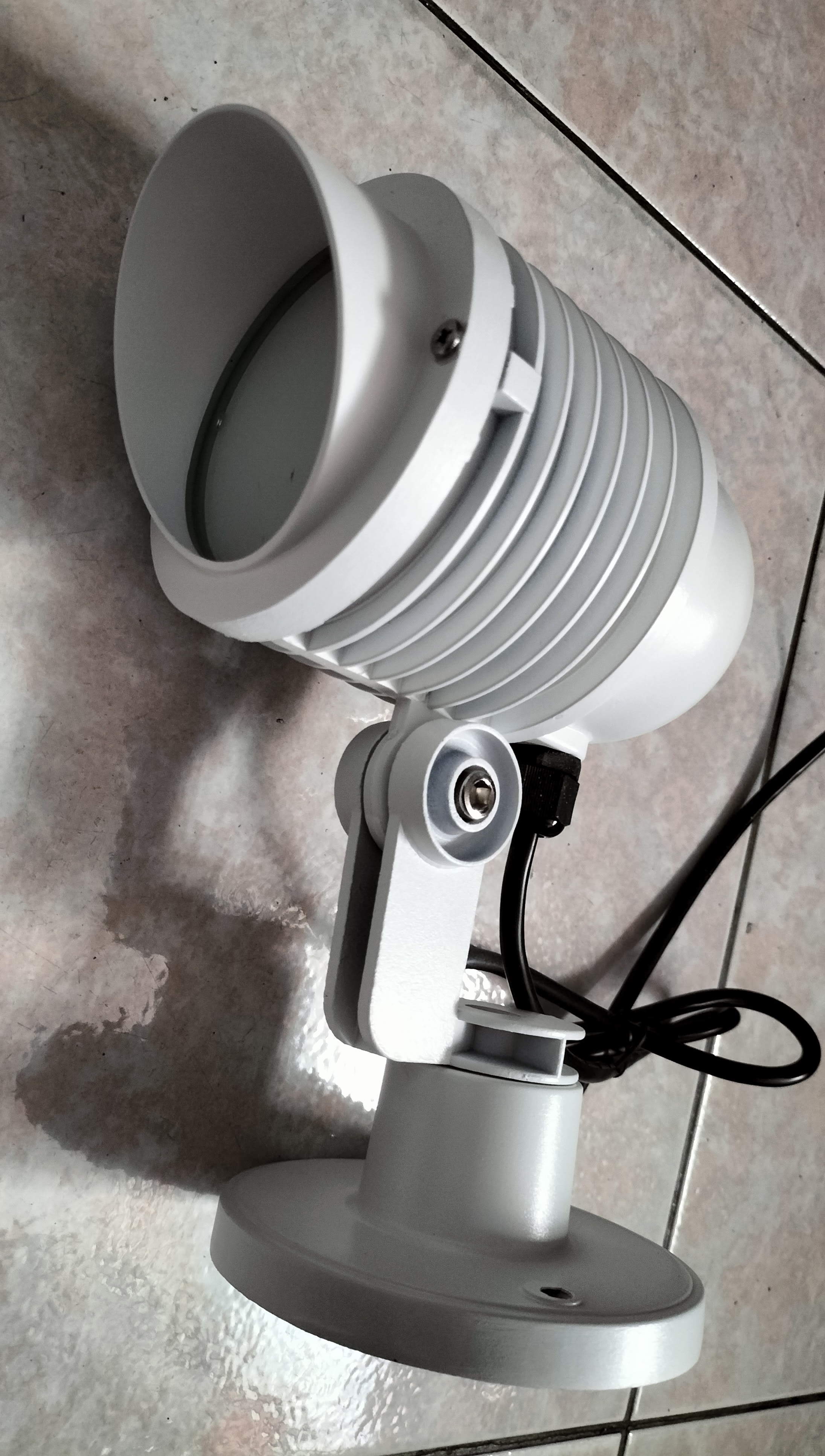

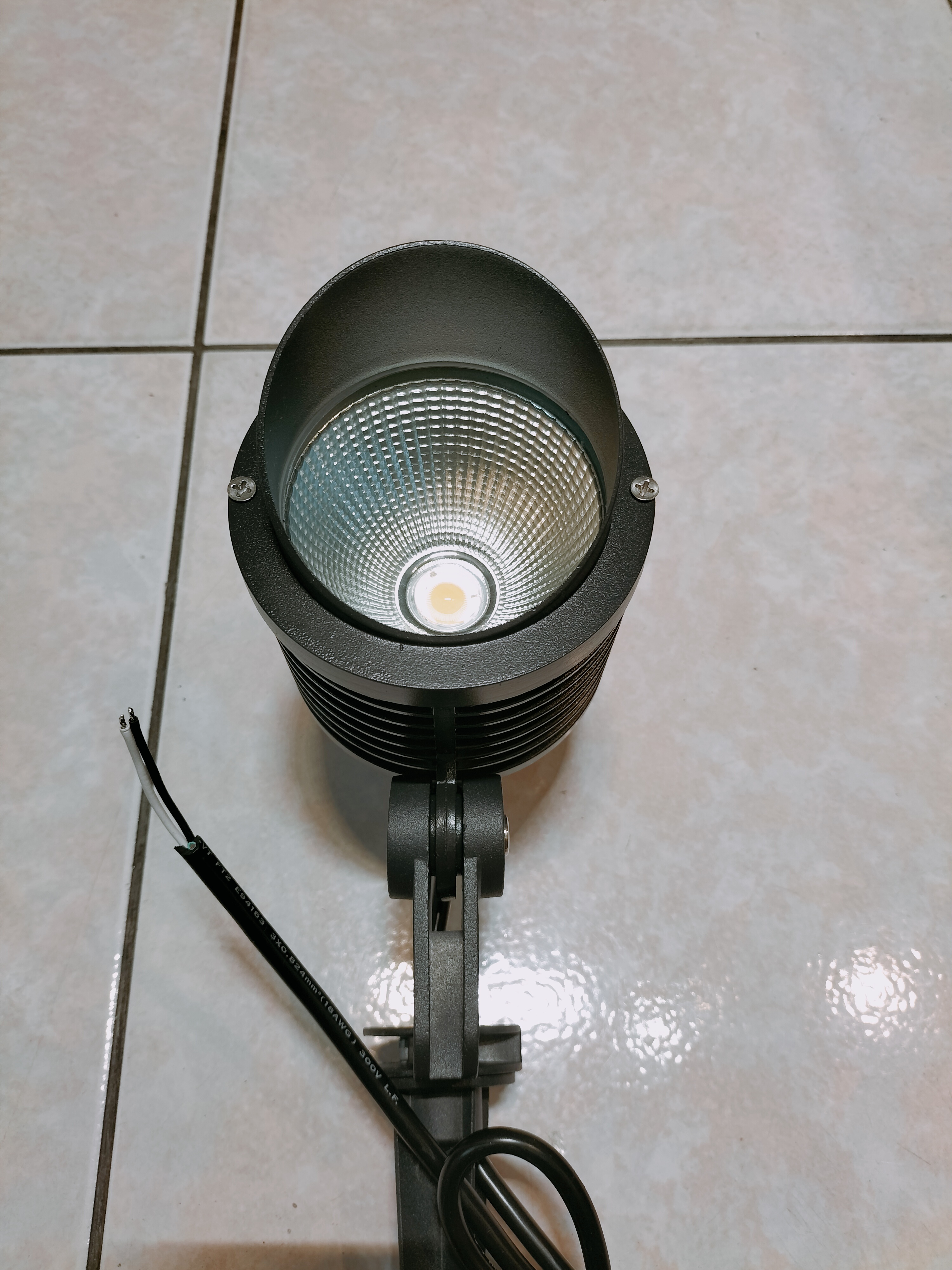

G05-投射燈、插地燈-Projection lamp cap edge、Ground lamp cap edge
|
|
|
|
| 照片-Photo | P1、P2、P3、P4(白底座)、P5(白底座) |
瓦數-Power |
12W、15W |
燈數-LED PCS |
1 |
封裝-Package |
036 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
25 |
| 尺寸-Size | Φ100*170*390 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.8M，如需要加長可另外告知- Standard outlet 0.8M, if you need to extend it, please inform us separately |

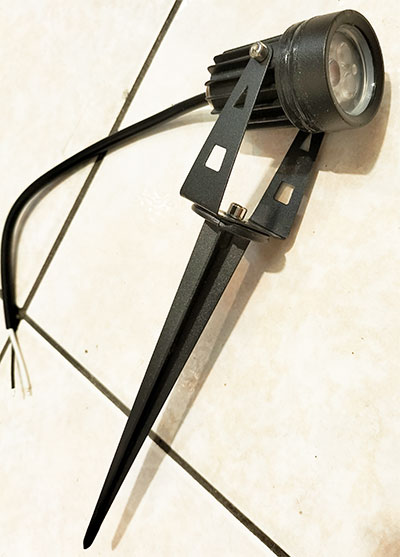

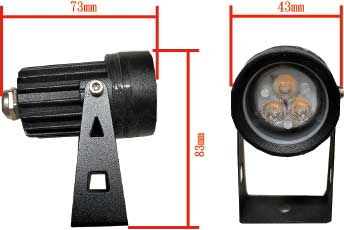

G06-投射燈、插地燈-Projection lamp cap edge、Ground lamp cap edge
|
|
|
|
| 照片-Photo | P1 |
瓦數-Power |
3W |
燈數-LED PCS |
3 |
封裝-Package |
3030 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
25、45 |
| 尺寸-Size | Φ43*73*83 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.3M，如需要加長可另外告知- Standard outlet 0.3M, if you need to extend it, please inform us separately |

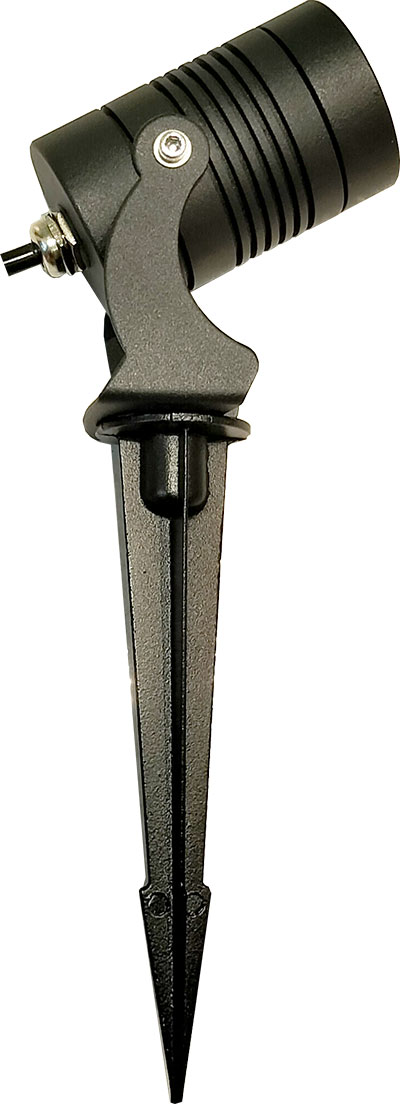

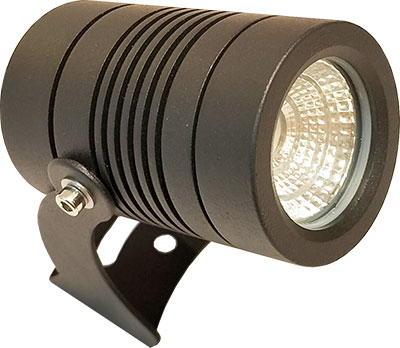

G07-投射燈、插地燈(訂製燈無庫存)-Projection lamp cap edge、Ground lamp cap edge
|
|
|
|
| 照片-Photo | |
瓦數-Power |
6W |
燈數-LED PCS |
3 |
封裝-Package |
6558 |
外殼-Shell color |
Black |
輸入-Input |
110~220V |
角度-Angle |
30 |
| 尺寸-Size | Φ50*80*245 mm |
下載-Download |
NA |
備註-Remarks |
標準出線0.3M，如需要加長可另外告知- Standard outlet 0.3M, if you need to extend it, please inform us separately |

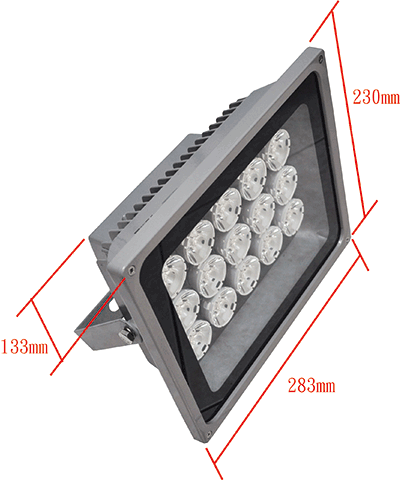

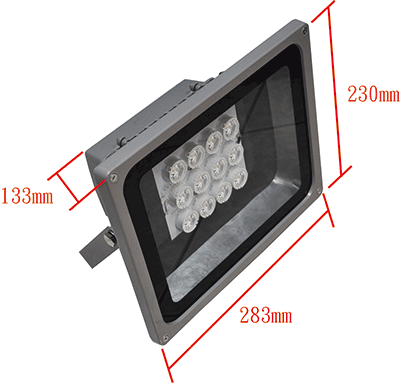

投光燈38-灰-Spotlights
|
|
 |
|
瓦數-Power |
50 |
燈數-LED PCS |
15 |
封裝-Package |
3535 |
外殼-Shell color |
Grey |
輸入-Input |
110~277V |
角度-Angle |
8 |
| 尺寸-Size | 283*230*133mm |
下載-Download |
SPEC、IES |
備註-Remarks |
|
投光燈25-灰-Spotlights
|
|
 |
|
| 照片-Photo | P1 |
瓦數-Power |
50、30 |
燈數-LED PCS |
15 |
封裝-Package |
3535 |
外殼-Shell color |
Grey |
輸入-Input |
110~277V |
角度-Angle |
15、36X69 |
| 尺寸-Size | 283*230*133mm(30W)
225*185*90mm(30W) |
下載-Download |
|
備註-Remarks |
|

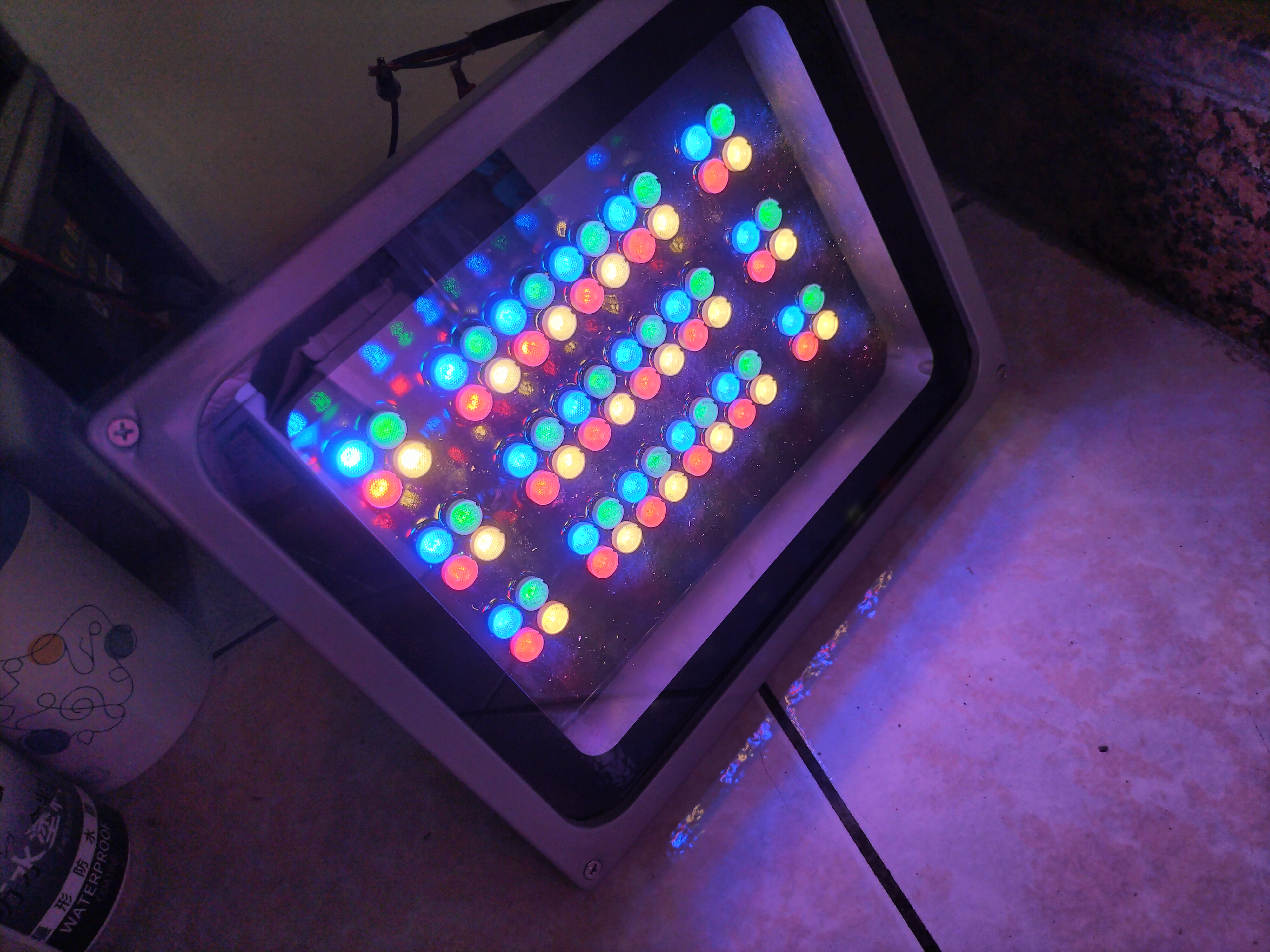

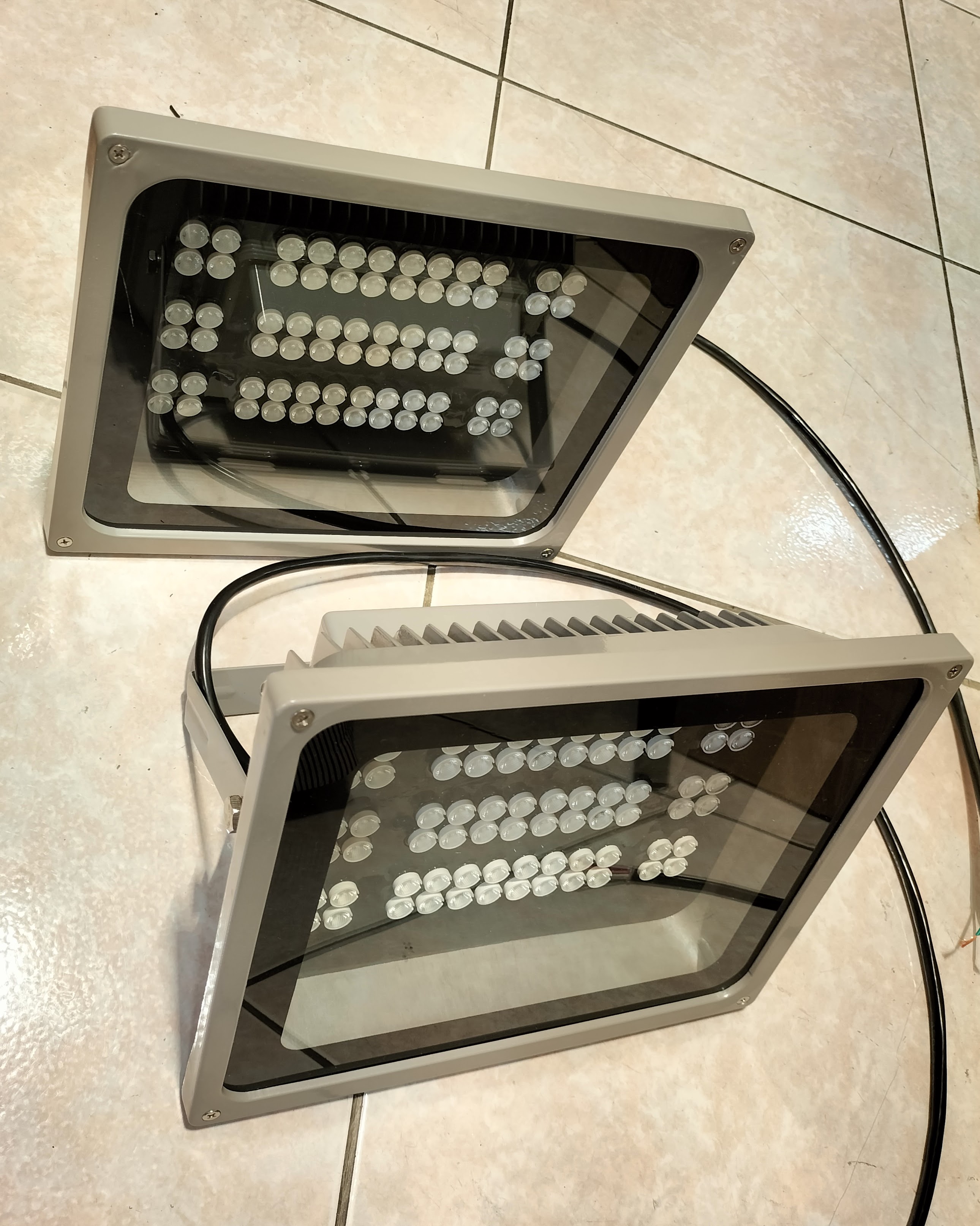

投光燈-灰-Spotlights
|
|
 |
|
| 照片-Photo | P1、P2 |
| 影片-Movice | M1、M2 |
瓦數-Power |
60(W=30W、R=15W、G=15W、B=15W) |
燈數-LED PCS |
72 |
封裝-Package |
3535 |
外殼-Shell color |
Grey |
輸入-Input |
DC24V |
角度-Angle |
15、30、45、60 |
| 尺寸-Size | 283*230*133mm |
備註-Remarks |
可我司配控製器或出5線客戶自行配控製器- Our company can equip the controller or the 5-wire customer can equip the controller by themselves |

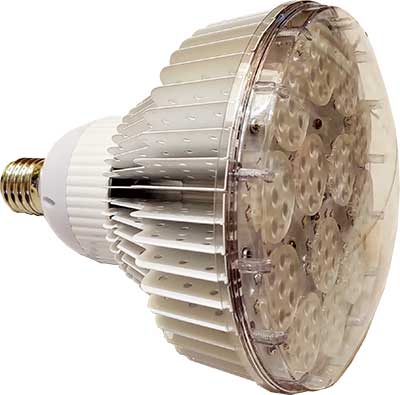

天井燈 100W-High bay light 100W
|
|
|
|
瓦數-Power |
100 |
燈數-LED PCS |
96 |
封裝-Package |
3030 |
外殼-Shell color |
White |
輸入-Input |
100~277V |
角度-Angle |
18、30、45、60 |
| 尺寸-Size | Φ210*280 mm、(E40) |
下載-Download |
NA |
備註-Remarks |
共有13各7燈模組，可依客戶來改變透鏡的角度。燈具上有加防墬落鋼鎖可固定在建築上-There are 13 7-lamp modules, which can change the angle of the lens according to the customer.The anti-falling steel lock on the luminaire can be fixed on the building. |

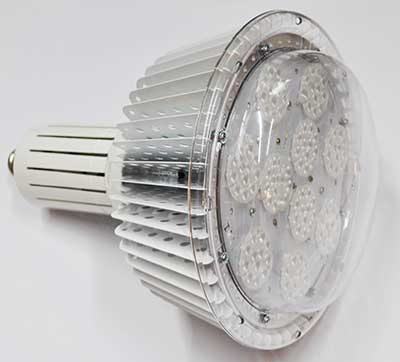

天井燈 150W-High bay light 150W
|
|
|
|
瓦數-Power |
150 |
燈數-LED PCS |
120 |
封裝-Package |
3030 |
外殼-Shell color |
White |
輸入-Input |
100~277V |
角度-Angle |
18、30、45、60 |
| 尺寸-Size | Φ280*430 mm、(E40) |
下載-Download |
NA |
備註-Remarks |
共有10各12燈模組，可依客戶來改變透鏡的角度。燈具上有加防墬落鋼鎖可固定在建築上-There are 10 12-lamp modules, which can change the angle of the lens according to the customer.The anti-falling steel lock on the luminaire can be fixed on the building. |
