Underground light系列產品規格-Underground light series product specifications

系列產品均使用日亞化LED-All products use Nichia LED
注意事項-Precautions

1、LED封裝3030規格可做色溫-LED package 3030 specifications can be used for color temperature

Ra>80
2000K 2400K
2700K 3000K
3500K 4000K
4500K 5000K
5700K 6500K
Ra>90
2700K 3000K
4000K 5700K
注意事項-Precautions

2、LED封裝3535規格可做色溫-LED package 3535 specifications can be used for color temperature

Ra>80
2700K 3000K
4000K 5000K
Ra>70
5700K



 注意事項-Precautions

3、LED封裝6558規格可做色溫-LED package 6558 specifications can be used for color temperature

Ra>80
2000K 2200K
2500K 2700K
3000K 3500K
4000K 5700K
Ra>90
2700K 3000K
4000K 5000K

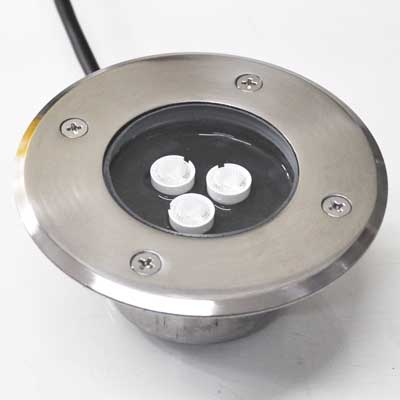

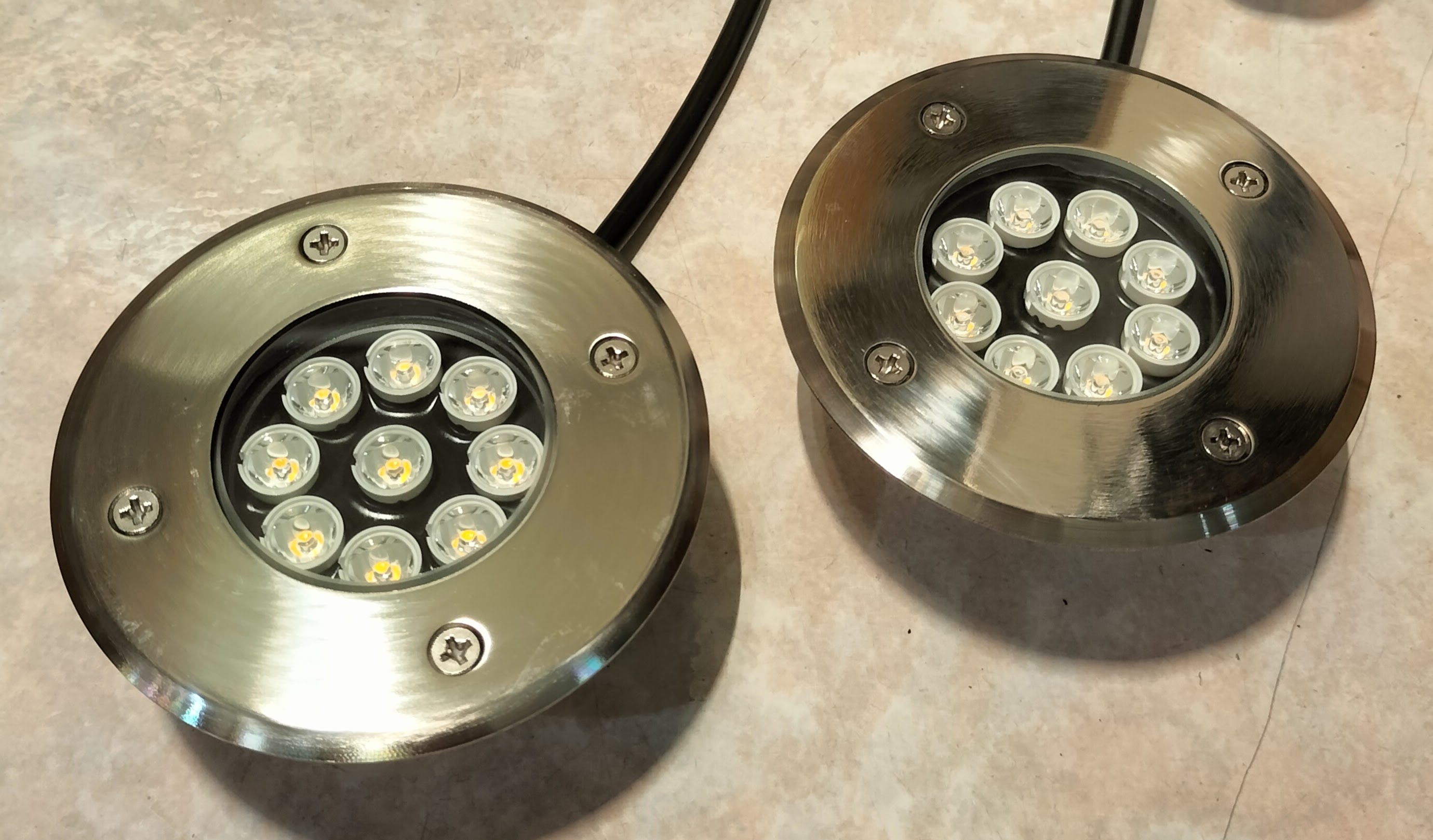

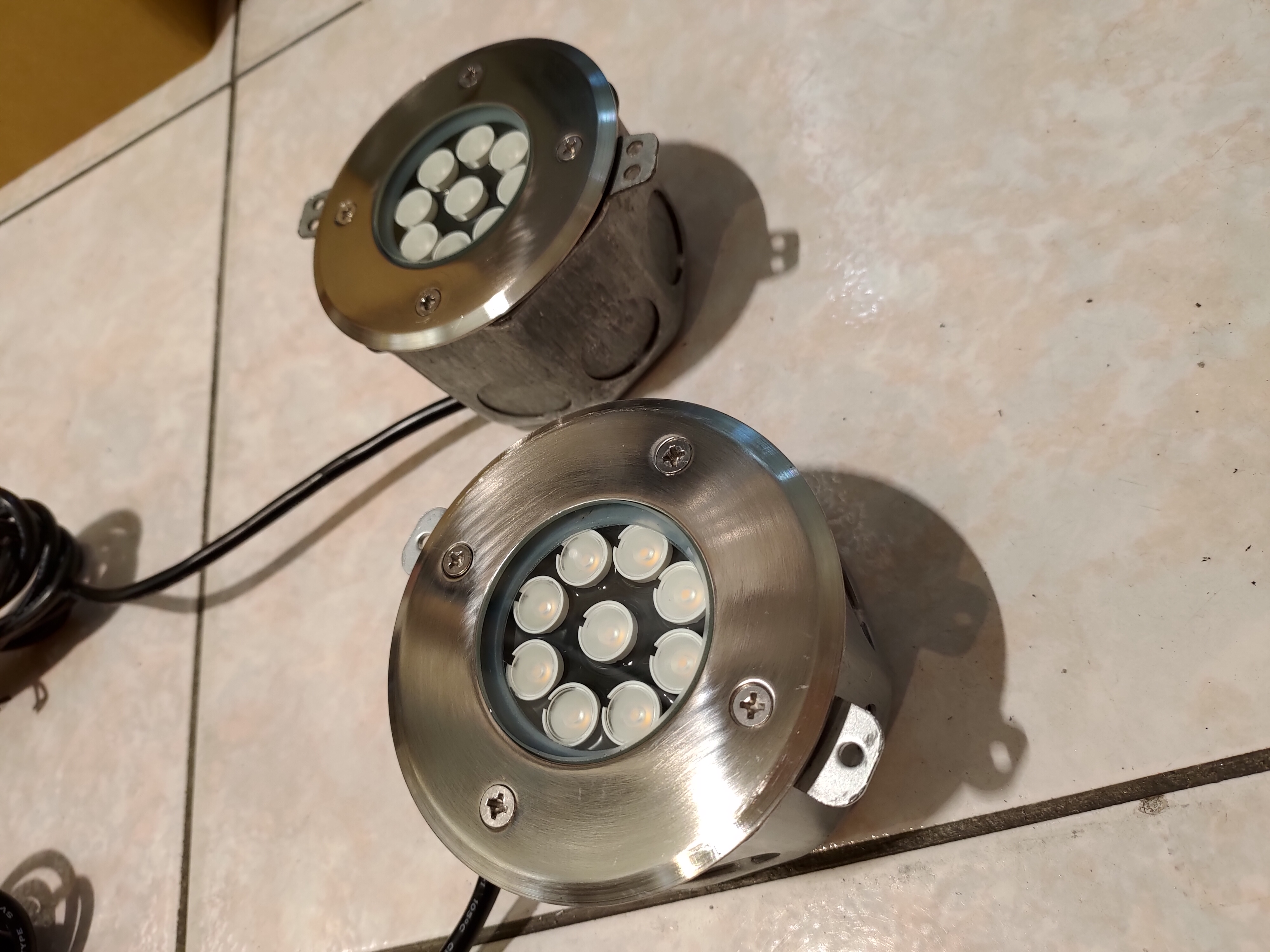

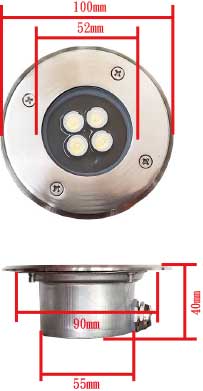

C67-投光地埋燈-C67-Spotlights underground light
s s
照片-Photo P1、P2、P3(3W)、P4(6W)
P5
瓦數-Power
 5
燈數-LED PCS
 4
封裝-Package
 3030
外殼-Shell color
 Slive
表面材質：
Surface material		 304
輸入-Input
 AC-110~220V/(4S-24150)
角度-Angle
 18、30、45、60
尺寸-Size Φ100*H40mm
下載-Download
 NA
備註-Remarks

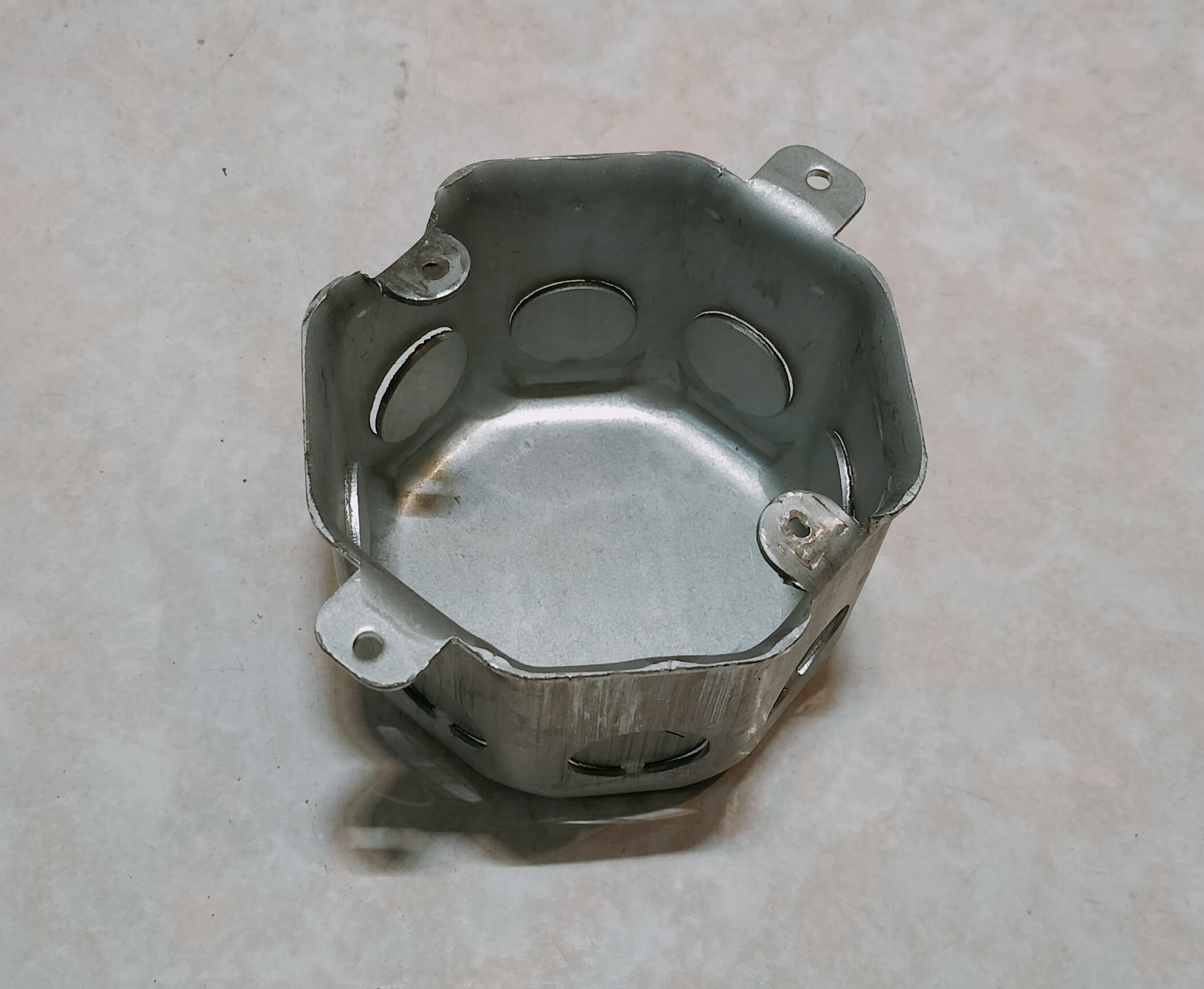

 使用常規八角預埋盒，有分深淺請注意。不另外在附不銹鋼螺絲，因裝設不同長度也有不同，安裝時要自行準備

另外可做規格如下-In addition, the specifications can be made as follows.
●DC-12V-3030-3W
/(3P-6450)
●DC-12V-3535-6W
/(3S-9570)
●DC-12V-3535-8W
/(3S-9750)
●DC-24V-3030-5W
/(2S2P-184 or 4S-182)
●DC-24V-3030-8W
/(3S3P-184)

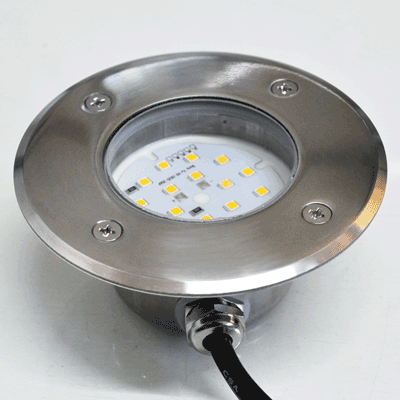

C67-泛光地埋燈-C67-Floodlight underground light
as
照片-Photo P1
瓦數-Power
 3
燈數-LED PCS
 18
封裝-Package
 3030
外殼-Shell color
 Slive
表面材質：
Surface material		 304
輸入-Input
 AC-110~220V/(4S4P-24150)
角度-Angle
 120
尺寸-Size Φ100*H40mm
下載-Download
 NA
備註-Remarks 使用常規八角預埋盒，有分深淺請注意。不另外在附不銹鋼螺絲，因裝設不同長度也有不同，安裝時要自行準備

另外可做規格如下-In addition, the specifications can be made as follows.
●DC-12V-3030-3W
/(2S9P-6450)
●DC-12V-3030-5W
/(2S9P-6700)
●DC-24V-3030-3W
/(2S9P-18200 or 4S4P-18200)
●DC-24V-3030-5W
/(2S9P-18400 or 4S4P-18400)

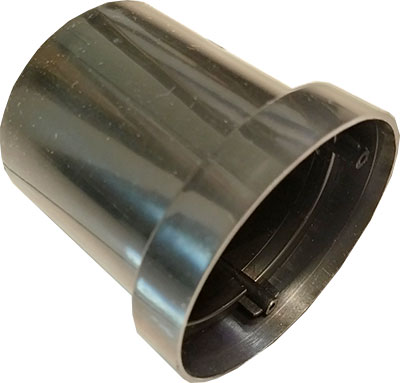

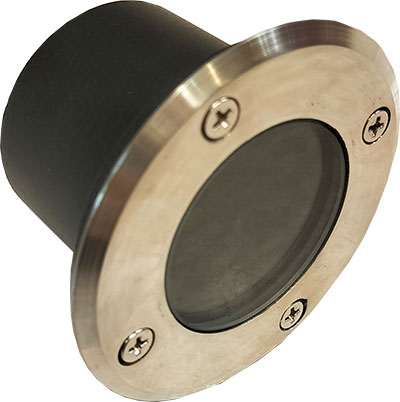

A04-地埋燈-A05-Underground light
a a
瓦數-Power
 3
燈數-LED PCS
 4
封裝-Package
 3030
外殼-Shell color
 Slive
表面材質：
Surface material		 304
輸入-Input AC-110~220V/(4S-24150)
角度-Angle
 15、30、45、60
尺寸-Size 80*77mm
下載-Download
 NA
備註-Remarks
 另外可做規格如下-In addition, the specifications can be made as follows.
●DC-12V-3535-3W
/(3S-9300)
●DC-24V-3030-3W
/(2S2P-182)

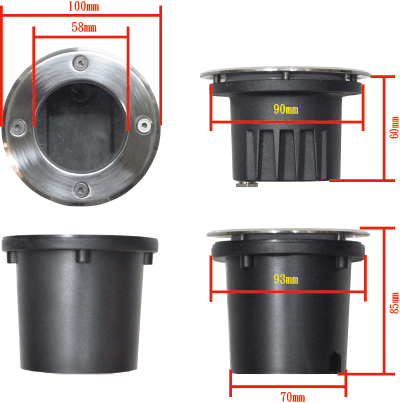

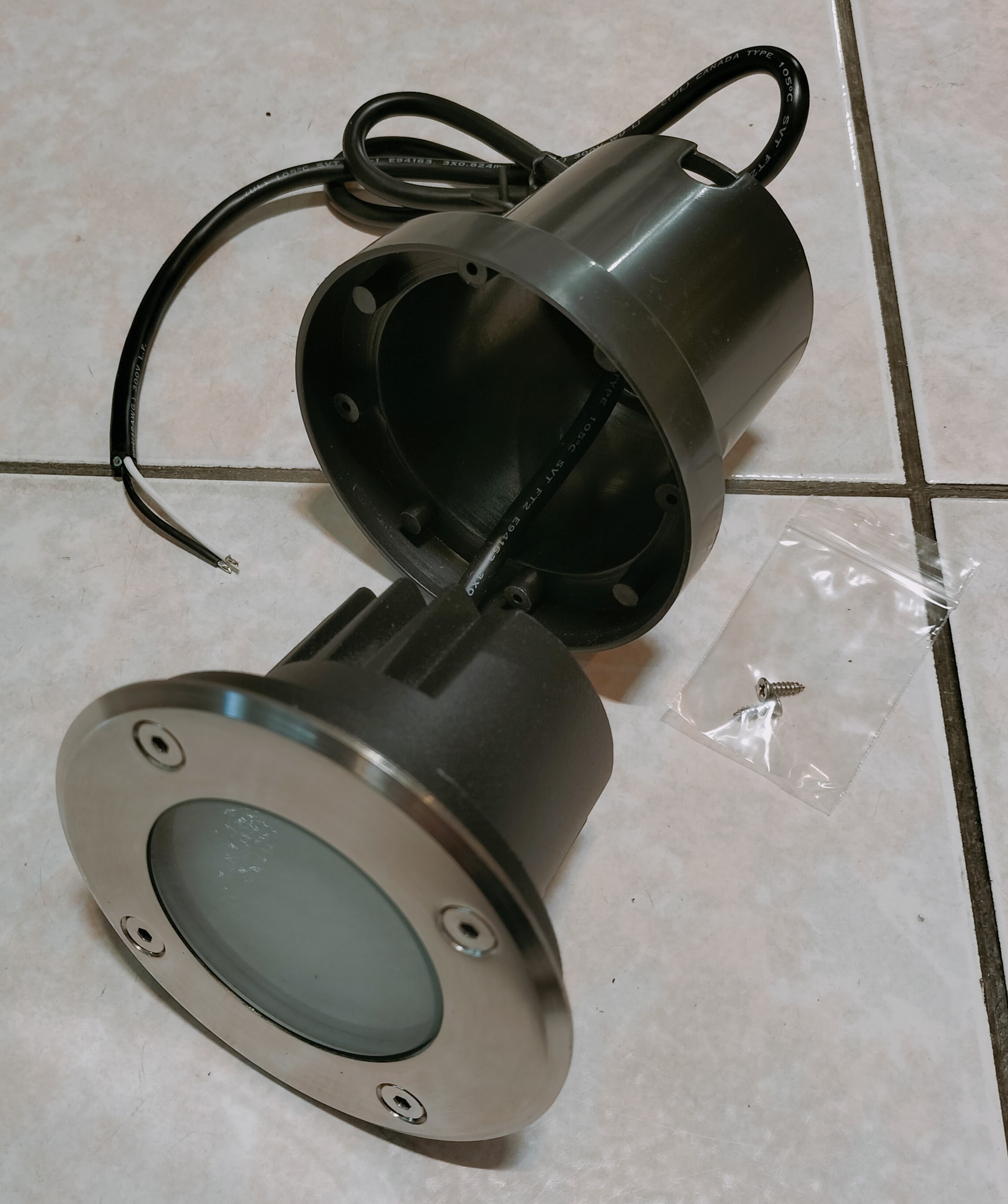

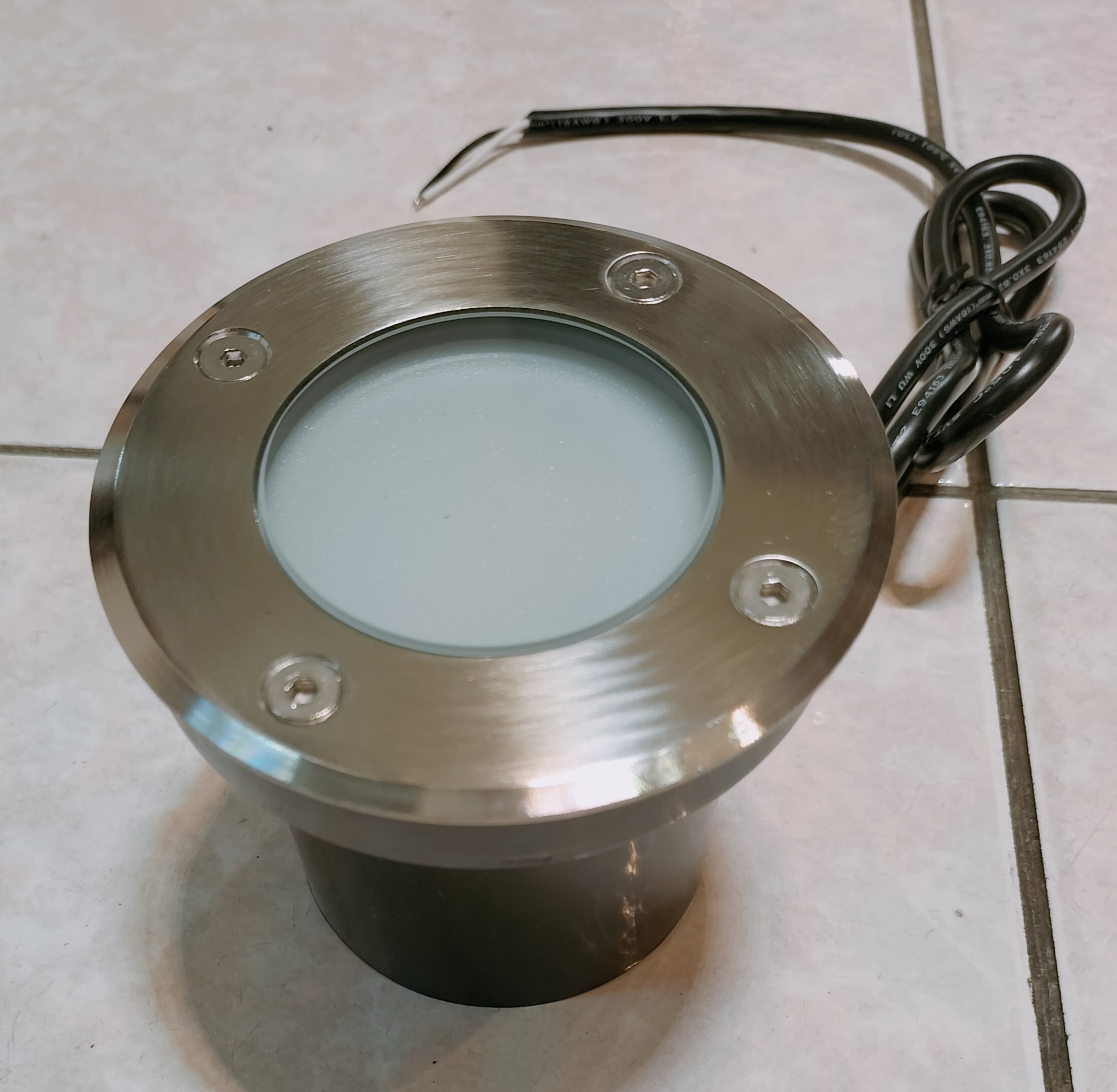

A05-地埋燈-A05-Underground light
a
照片-Photo P1、P2、P3
瓦數-Power
 5
燈數-LED PCS
 4
封裝-Package
 3030
外殼-Shell color
 Slive
表面材質：
Surface material		 304
輸入-Input
 AC-110~220V/(4S-24150)
角度-Angle
 15、30、45、60
尺寸-Size Φ100*H80mm
下載-Download
 NA
備註-Remarks
 另外可做規格如下-In addition, the specifications can be made as follows.
●AC-110~220V-3030-8W
/(8S-48160)

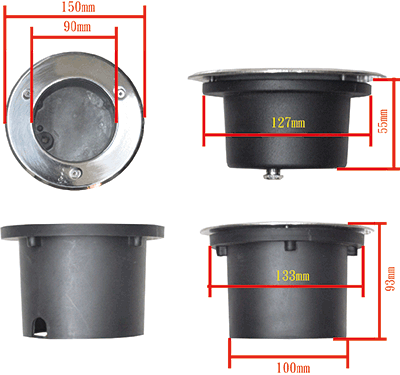

A14-地埋燈-A14-Underground light
a
瓦數-Power
 5
燈數-LED PCS
 4
封裝-Package
 3030
外殼-Shell color
 Slive
表面材質：
Surface material		 304
輸入-Input
 AC-110~220V/(4S-24150)
角度-Angle
 15、30、45、60
尺寸-Size Φ150*H95mm
下載-Download
 NA
備註-Remarks
 另外可做規格如下-In addition, the specifications can be made as follows.
●AC-110~220V-3030-8W
/(8S-48160)
●DC-24V-3030-8W
/(3S3P-18400)
●DC-24V-3030-12W
/(3S4P-18600)

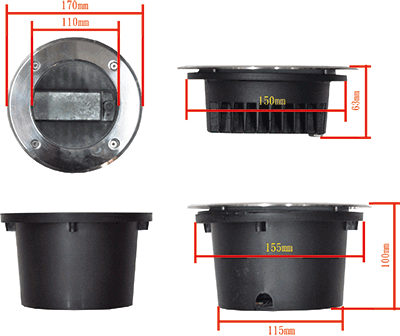

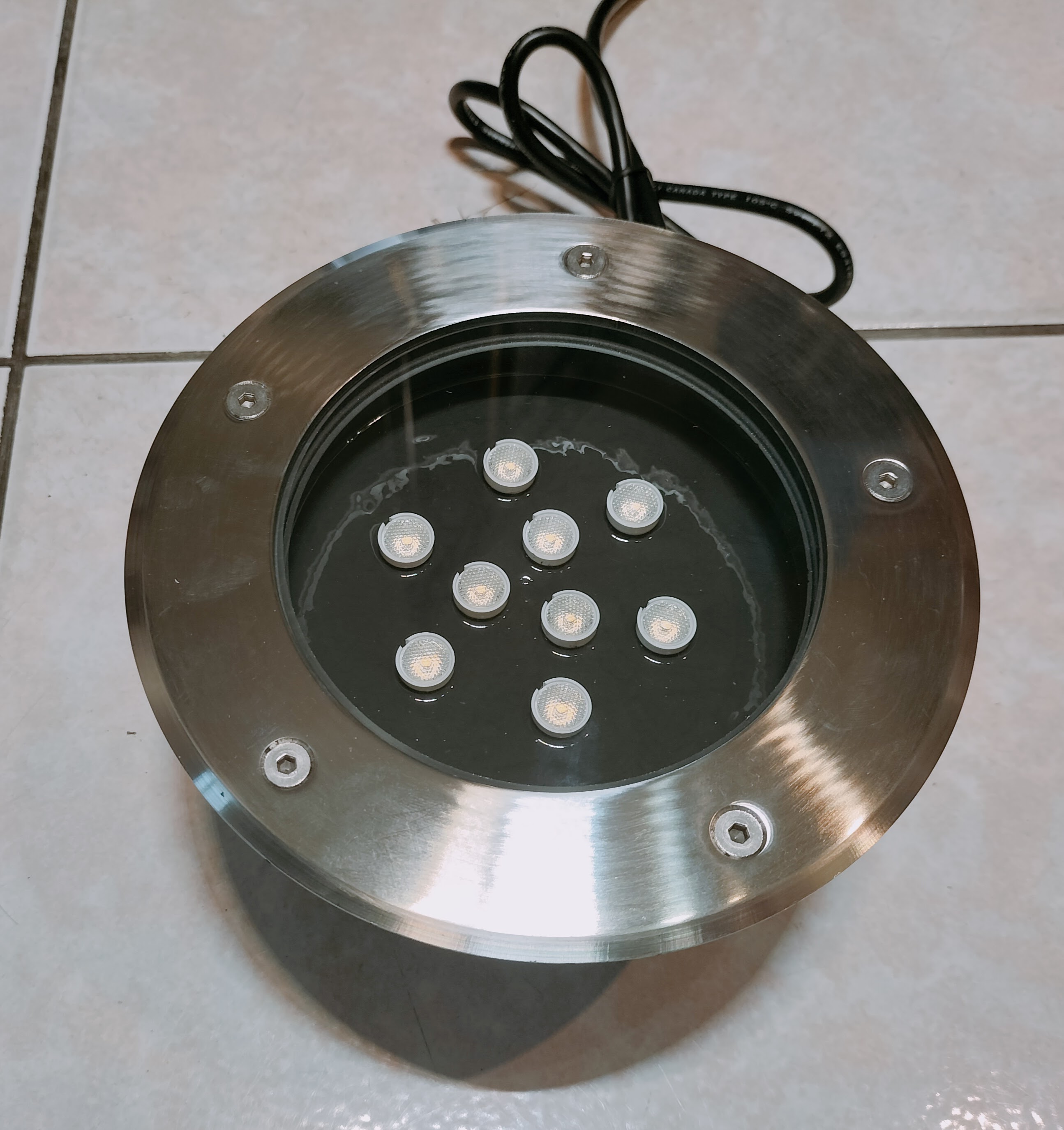

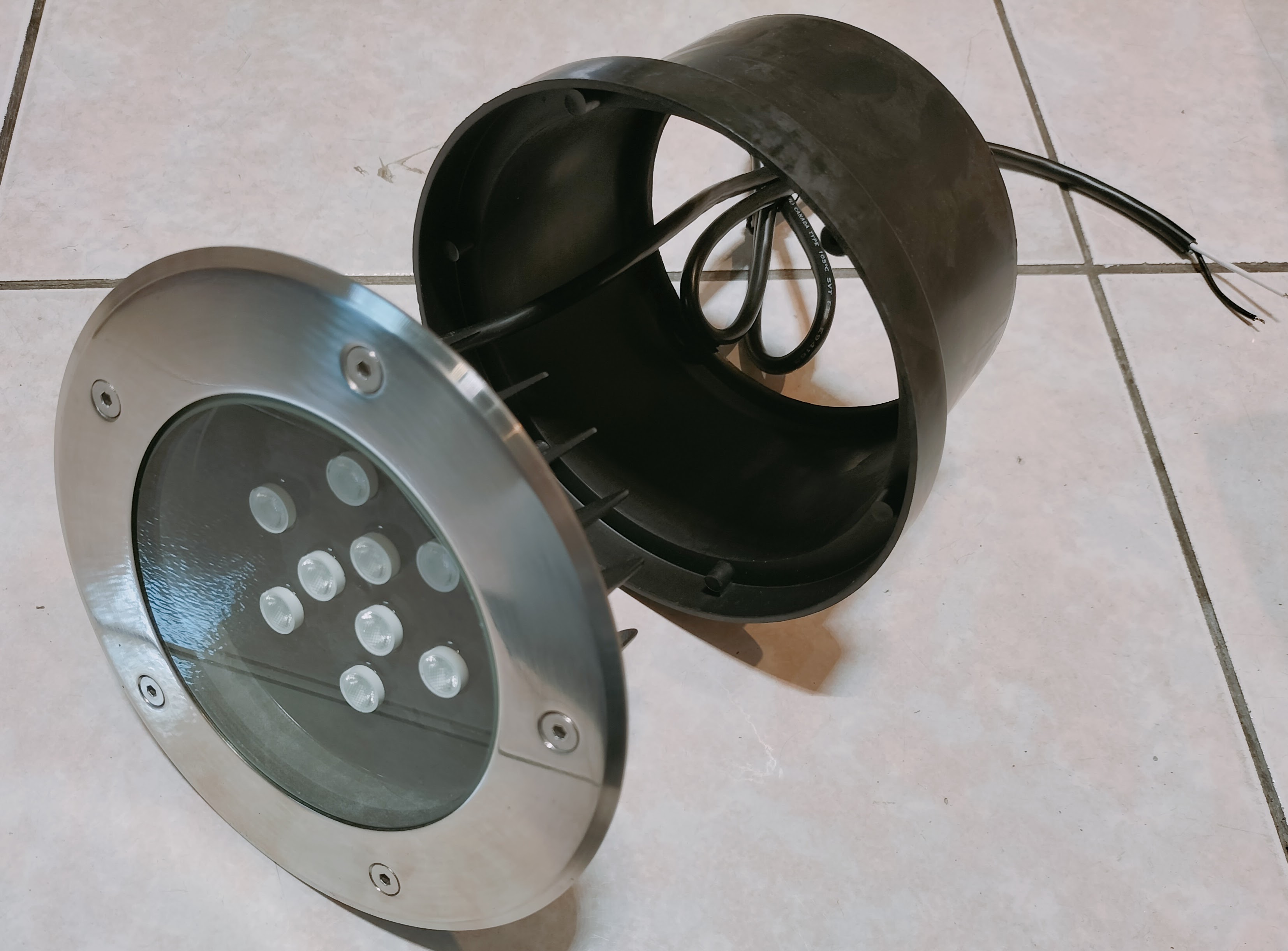

A17-地埋燈-A17-Underground light
a
照片-Photo P1、P2
瓦數-Power
 8
燈數-LED PCS
 8/9
封裝-Package
 3030
外殼-Shell color
 Slive
表面材質：
Surface material		 304
輸入-Input
 AC-110~220V/(8S-56160)
角度-Angle
 15、30、45、60
尺寸-Size Φ170*H95mm
下載-Download
 NA
備註-Remarks
 另外可做規格如下-In addition, the specifications can be made as follows.
●AC-110~220V-3535-18W
/(9S-27600)
●DC-24V-3030-8W
/(3S3P-18400)
●DC-24V-3030-12W
/(3S4P-18600)

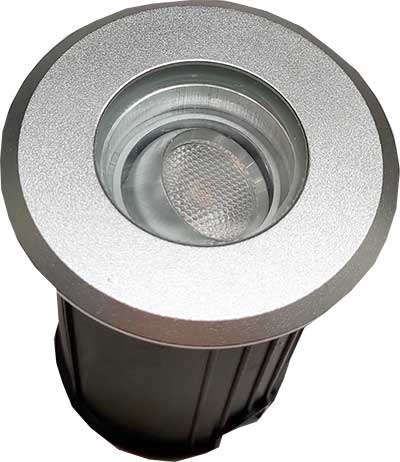

A62A-地埋燈可調角度
a
瓦數-Power
 3
燈數-LED PCS
 1
封裝-Package
 144AM
外殼-Shell color
 Slive
表面材質：
Surface material		 AL
輸入-Input
 CV-DC12V(6450)
角度-Angle
 30
尺寸-Size Φ62*H85mm
下載-Download
 NA
備註-Remarks

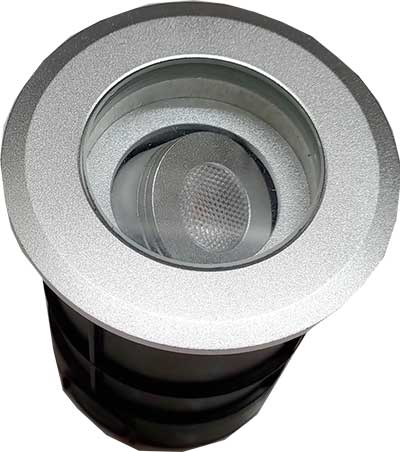

A75A-地埋燈可調角度
a
瓦數-Power
 AC-2W
燈數-LED PCS
 1
封裝-Package
 144AR
外殼-Shell color
 Slive
表面材質：
Surface material		 AL
輸入-Input
 AC-110~220V/(12150)
角度-Angle
 30
尺寸-Size Φ75*H92mm
下載-Download
 NA
備註-Remarks
 另外可做規格如下-In addition, the specifications can be made as follows.
●DC-24V-144AR-3W
/(18200)

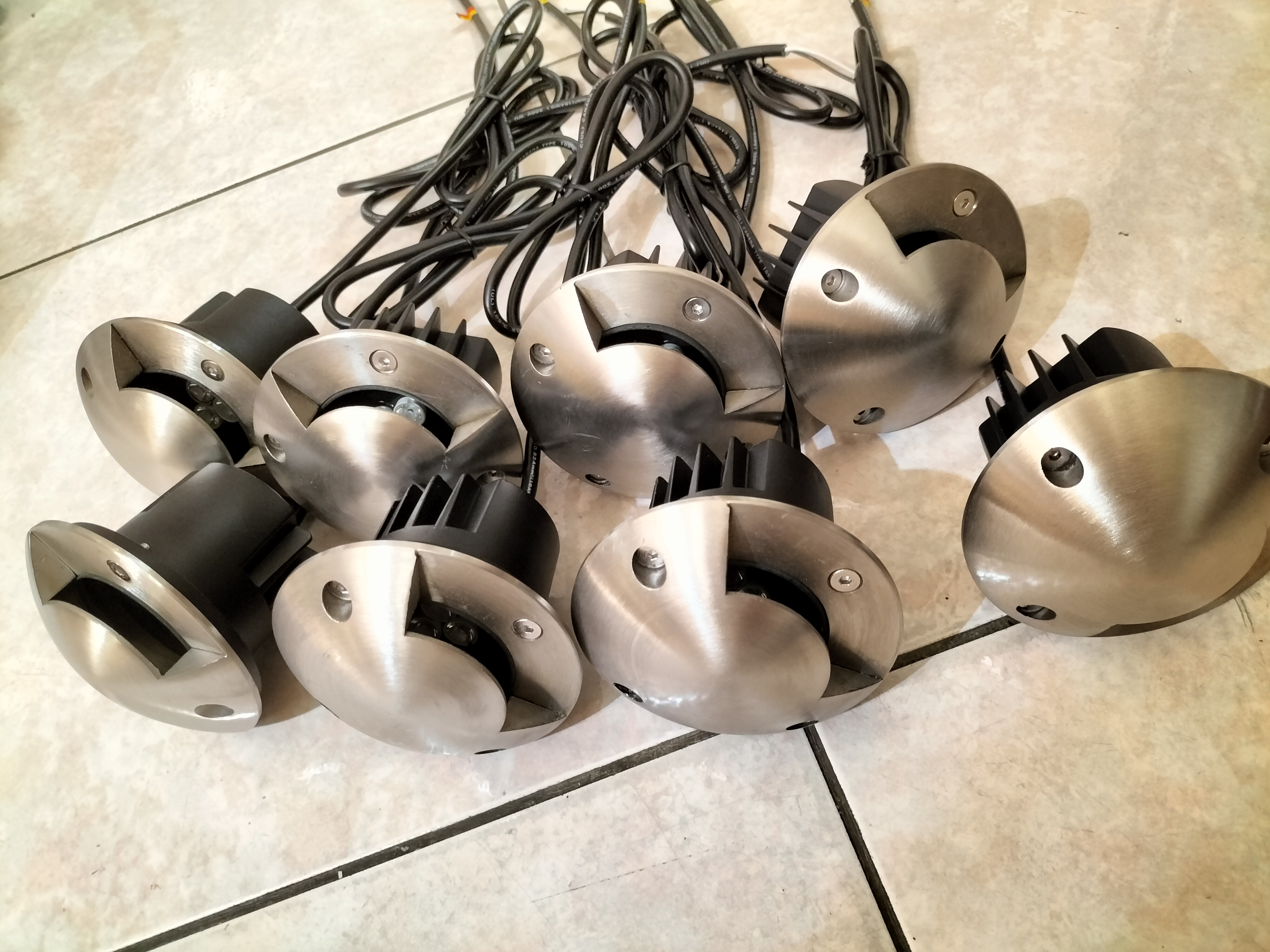

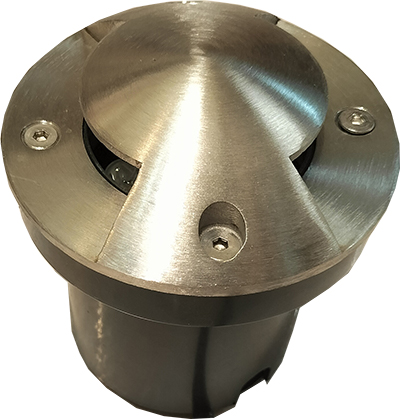

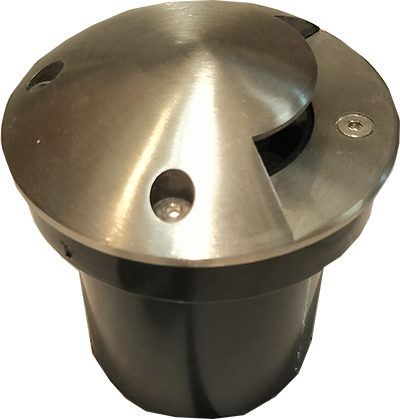

A100S&D-地埋燈單和雙側發光
a s
照片-Photo P1
瓦數-Power
 5
燈數-LED PCS
 4
封裝-Package
 3030
外殼-Shell color
 Slive
表面材質：
Surface material		 304
輸入-Input
 AC-110~220V/(4S-24150)
角度-Angle
 15
尺寸-Size Φ100*H105mm
下載-Download
 NA
備註-Remarks
 另外可做規格如下-In addition, the specifications can be made as follows.
●AC-110~220V-3030-8W
/(8S-48160)

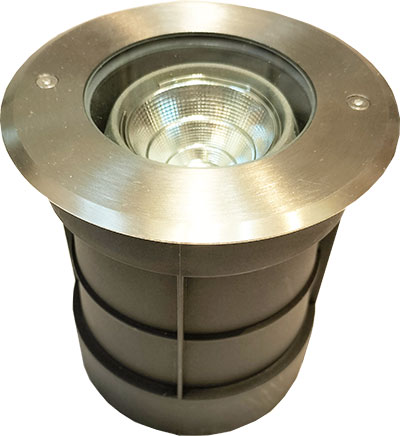

A130T-地埋燈可調角度
a
瓦數-Power
 24V-5W、AC-6W
燈數-LED PCS
 1
封裝-Package
 6558
外殼-Shell color
 Slive
表面材質：
Surface material		 304
輸入-Input
 AC-110~220V/(44125)
角度-Angle
 30
尺寸-Size Φ130*H140mm
下載-Download
 NA
備註-Remarks
